Torque Data

Flywheel (T2) 72 Nm (7.3 kgf-m, 52.8 ft. lbs)

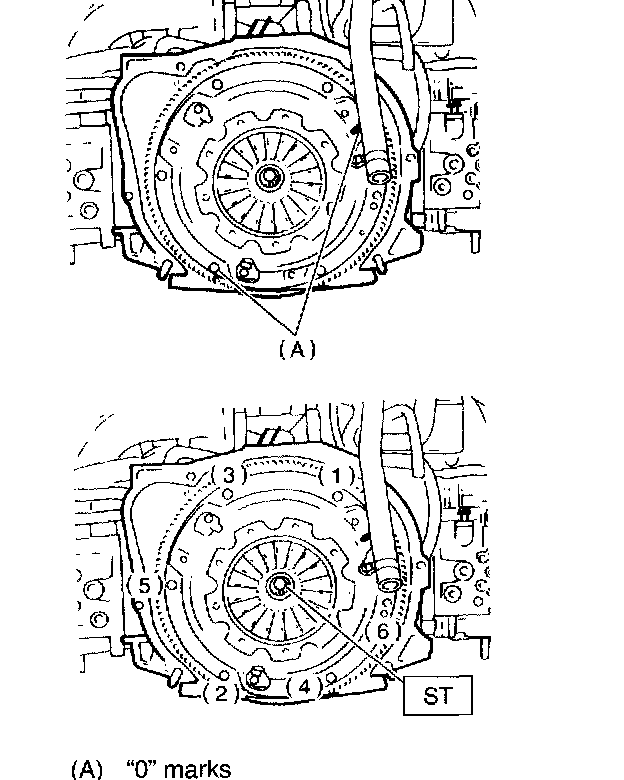

Pressure Plate [Clutch Cover] (T1) 15.7 Nm (1.6 kgf-m, 11.6 ft. lbs)
Operating (Slave) Cylinder Mounting bolts (T4) 8 Nm (0.8 kgf-m, 5.8 ft. lbs)
Master Cylinder Mounting nuts (T3) 18 Nm (1.8 kgf-m, 13.0 ft. lbs)
Clutch Pedal Bracket Mount
(T1) 8 Nm (0.8 kgf-m, 5.8 ft. lbs)
(T2) 18 Nm (01.8, 13 ft. lbs)

Clutch Switch 8 Nm (0.8 kgf-m, 5.8 ft. lbs)
Clutch Pedal Stopper (w/Crusie Control) 8 Nm (0.8 kgf-m, 5.8 ft. lbs)
Clutch Switch (w/Starter Interlock) 8 Nm (0.8 kgf-m, 13.0 ft. lbs)
