System Specifications

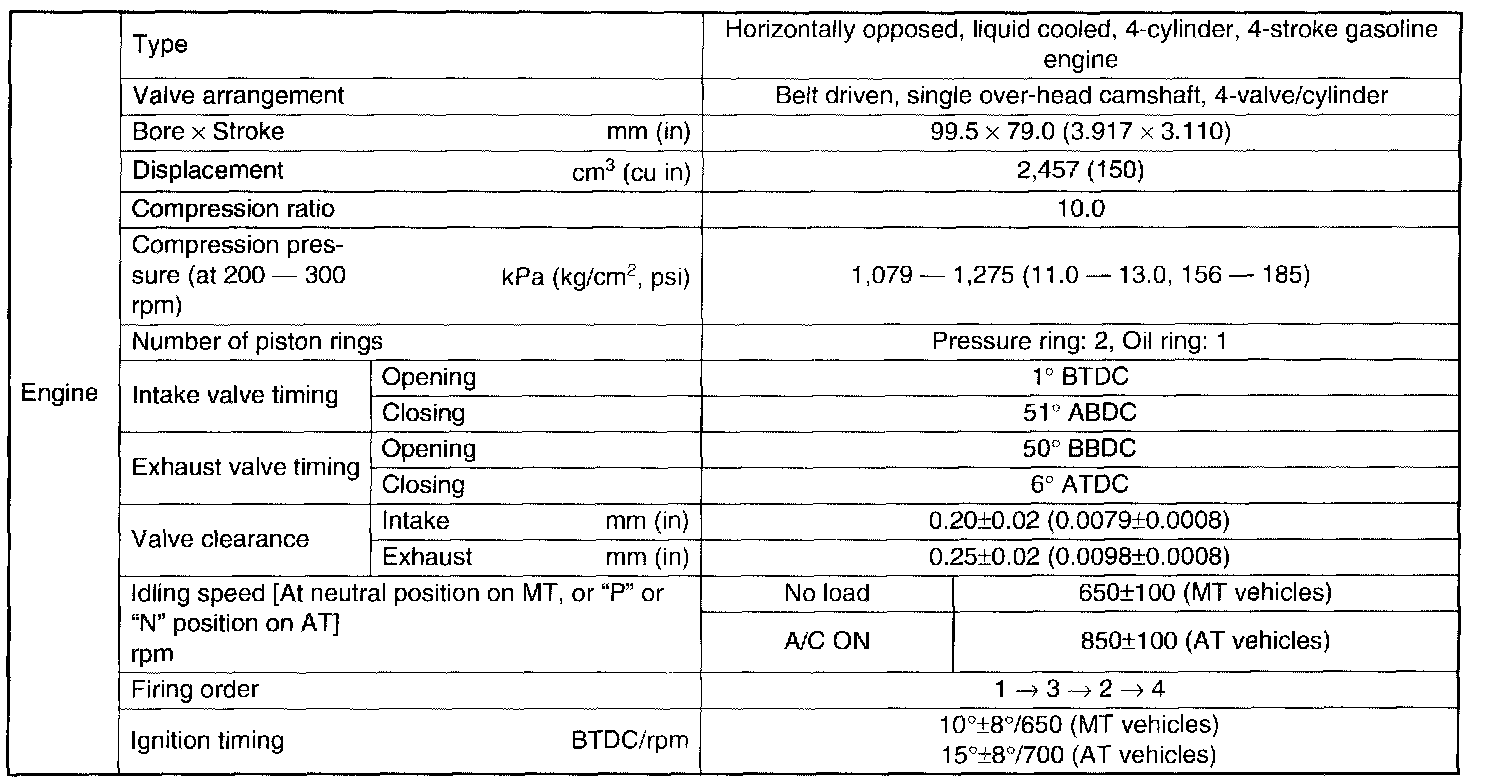

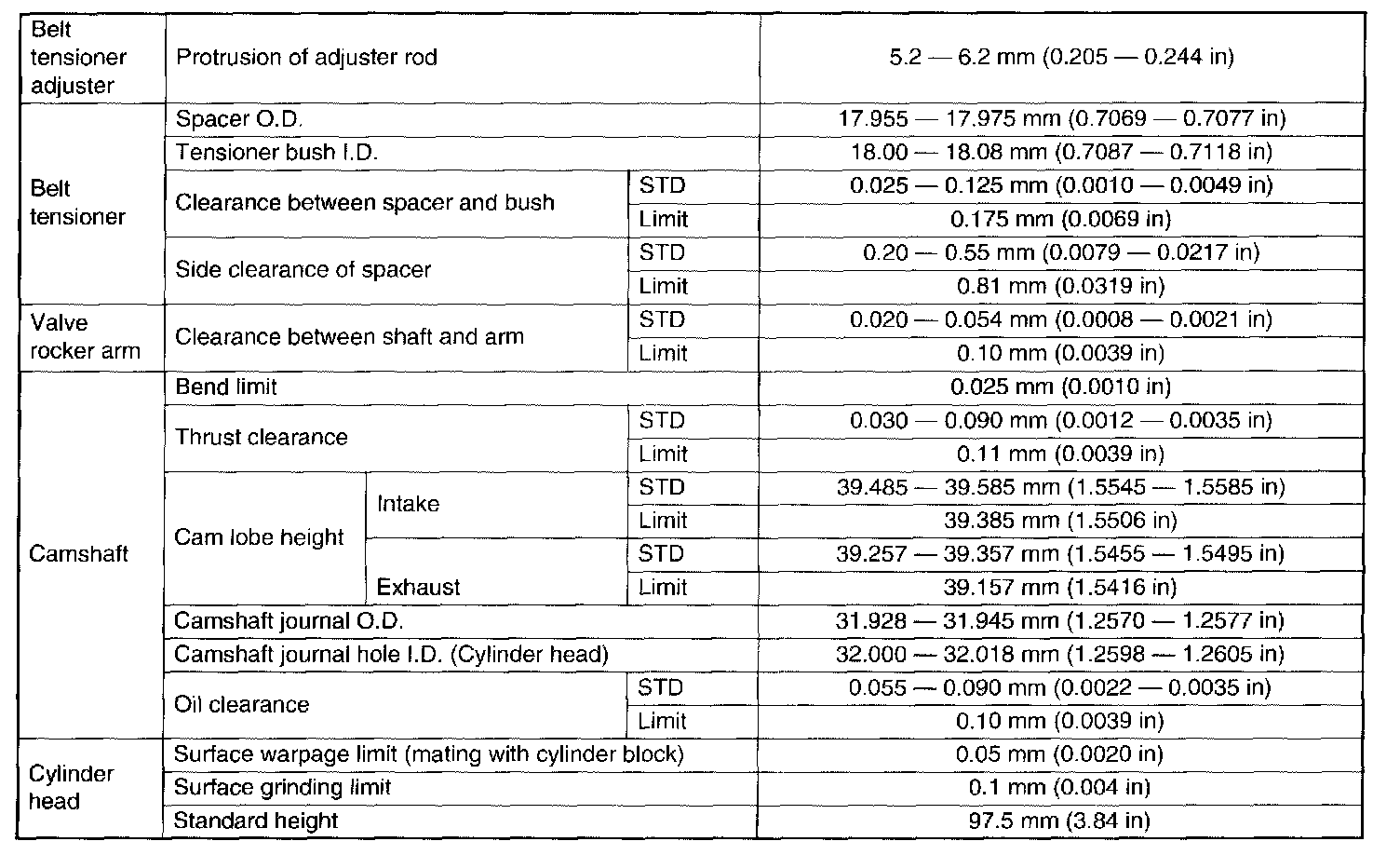

SPECIFICATIONS

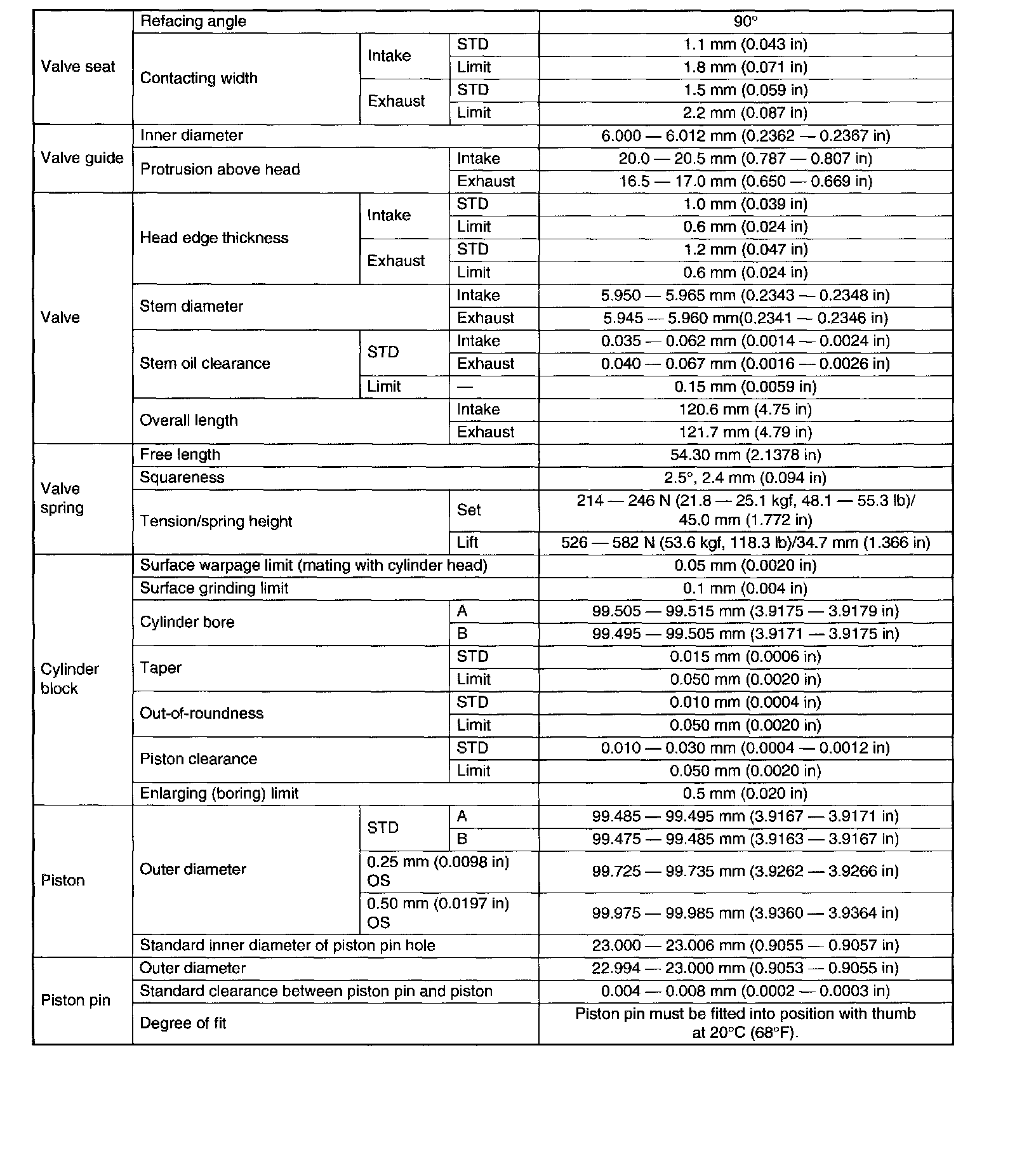

CYLINDER BLOCK

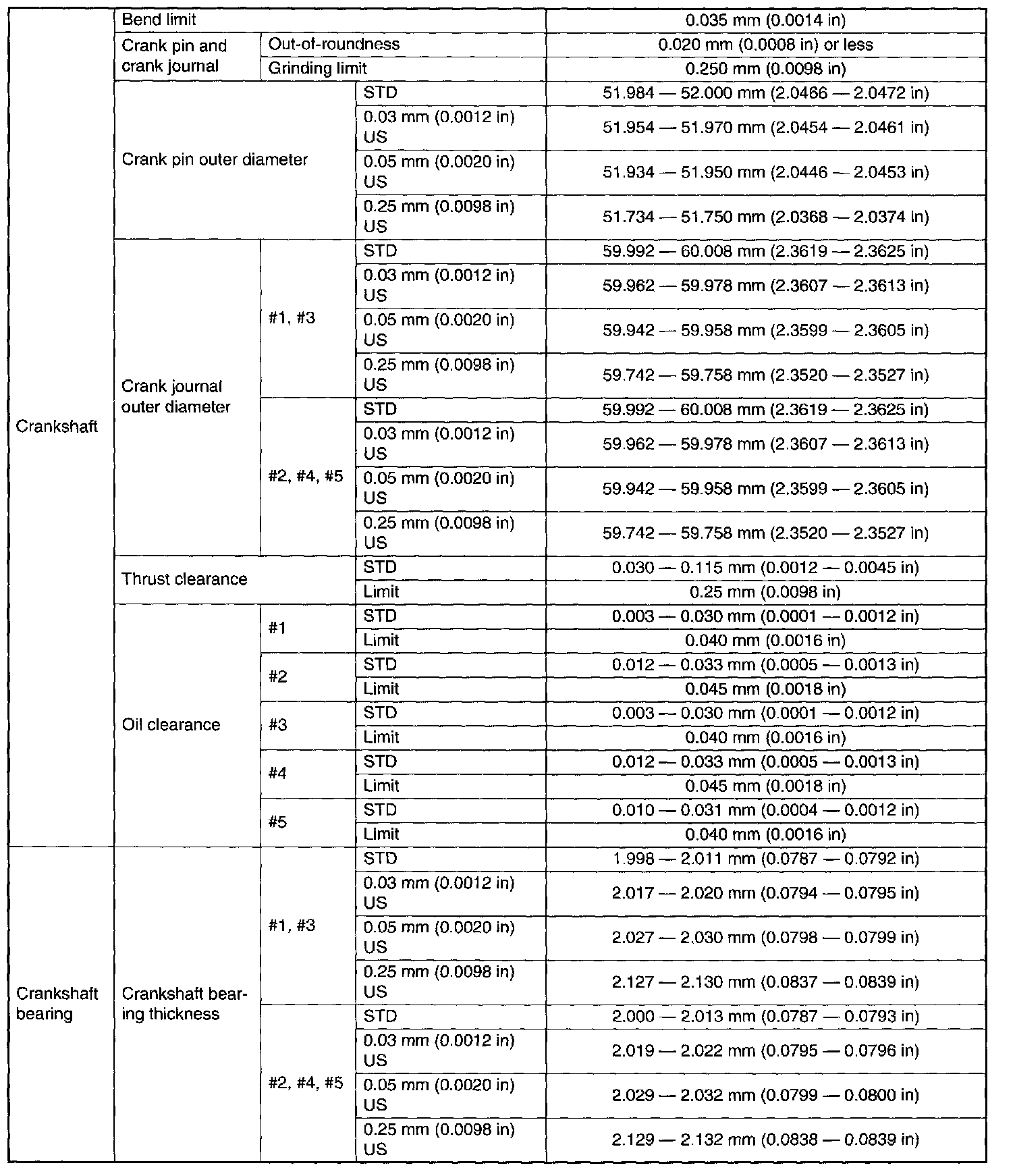

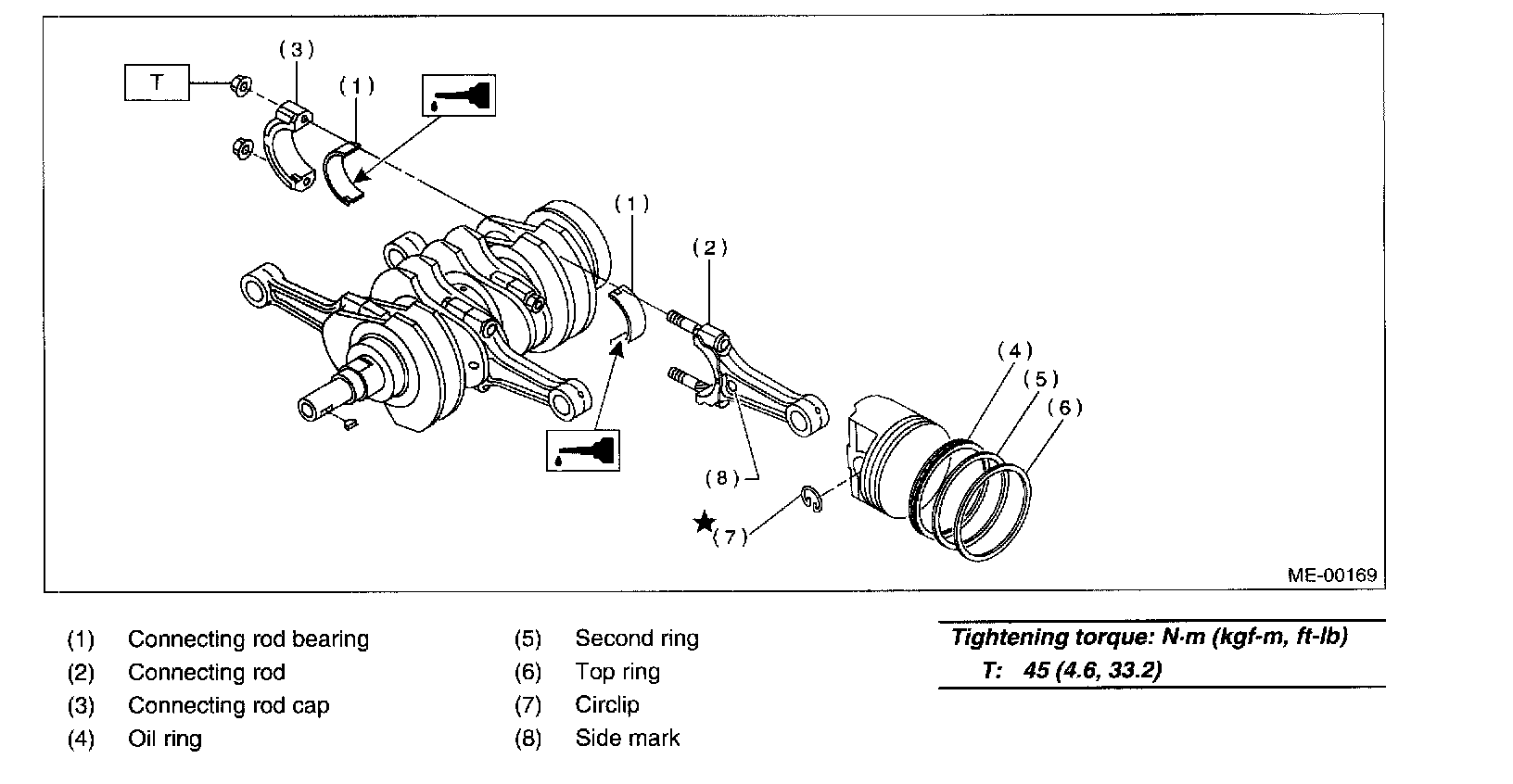

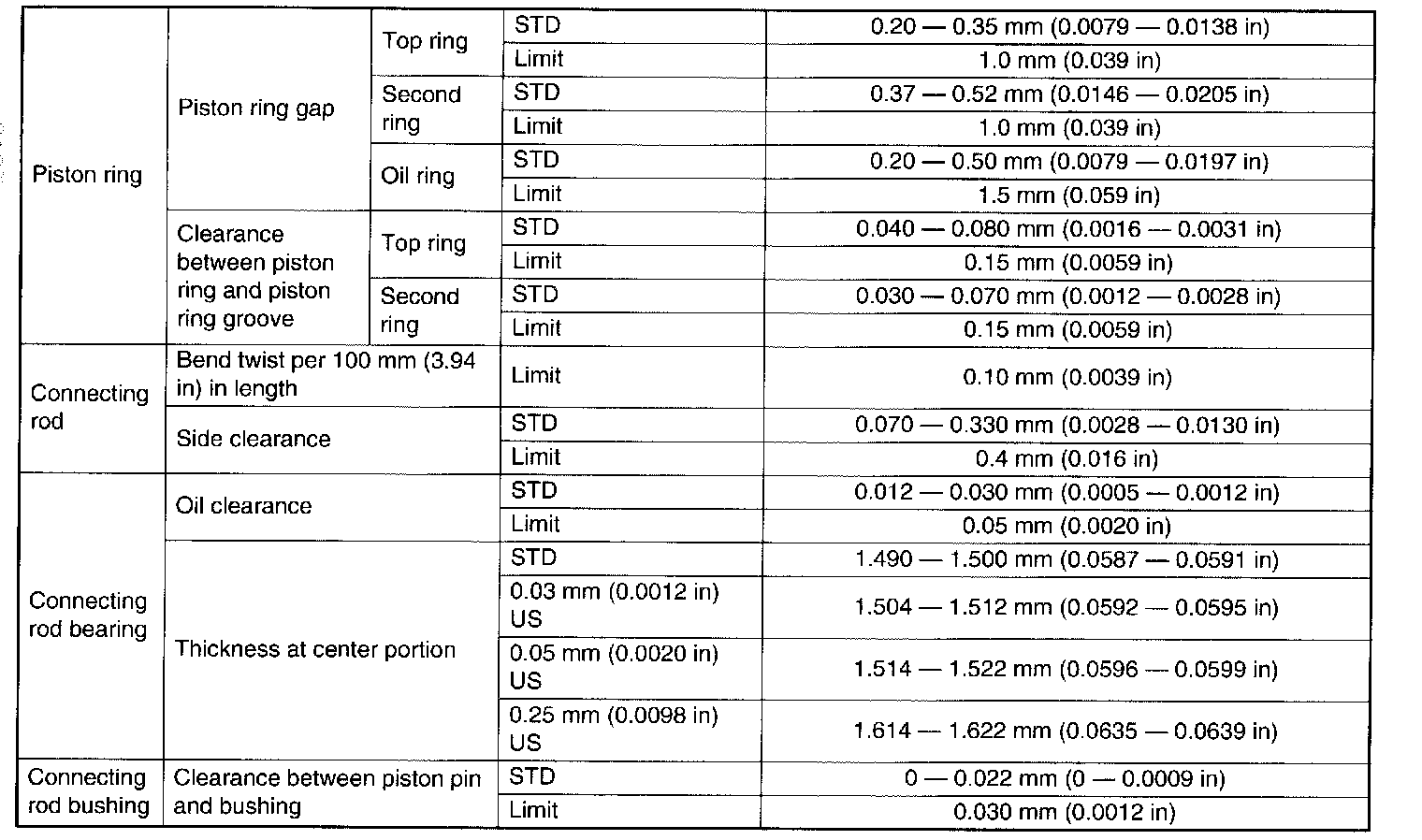

CRANKSHAFT AND PISTON


Main bearing cap torque sequence; Removal and Installation





















NOTE: STD: Standard I.D.: Inner Diameter O.D.: Outer Diameter US: Undersize OS: Oversize
