Transmission Control Module (TCM): Installation

  1. Install the transmission control module.
    1. Tightening torque:  25 N.m (2.5 kgf-m, 18.1 ft-lb)

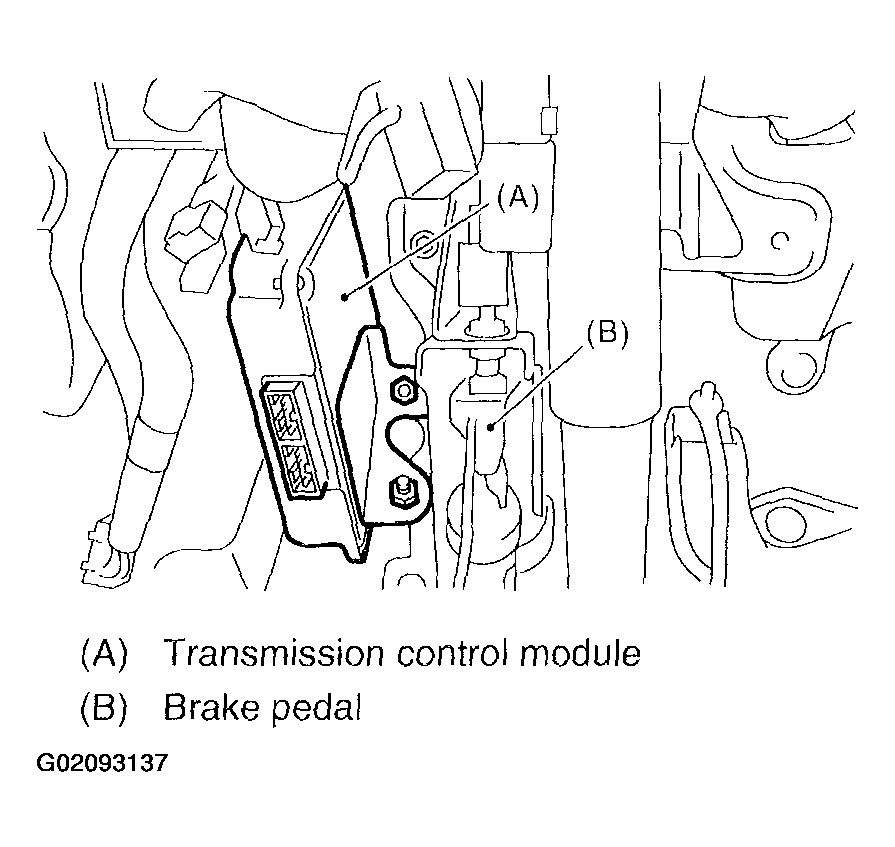

    Fig 1: Installing Transmission Control Module
    G02093137Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the connectors to transmission control module.
  3. Install in the reverse order of removal.
