Diagnostic Charts

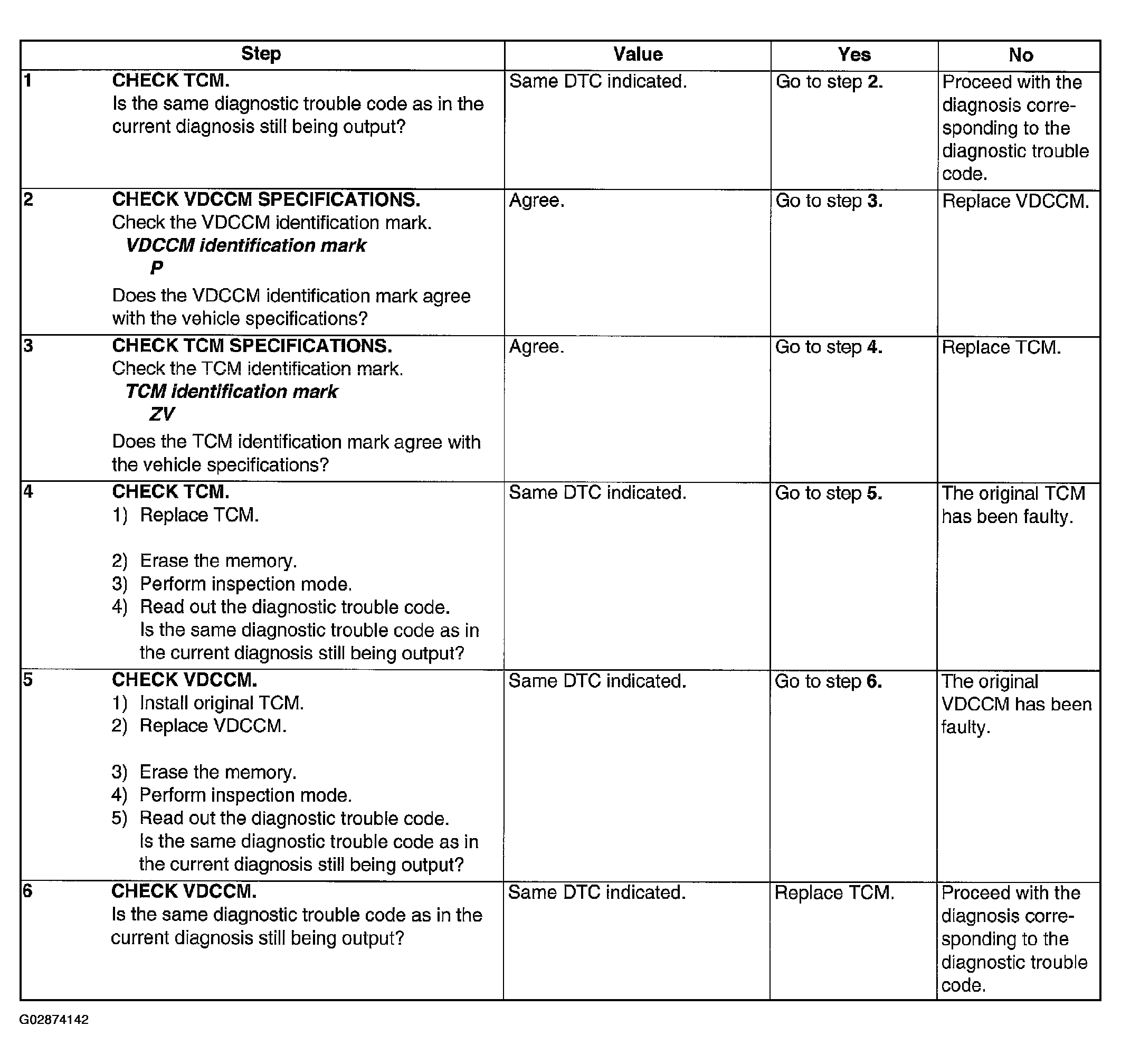

Fig 1: DTC 45: Control Module Out Of Specification Diagnostics Chart - (Steps 1 To 6)
G02874142Courtesy of SUBARU OF AMERICA, INC.
