At Select Lever (Except Sport Shift Model)

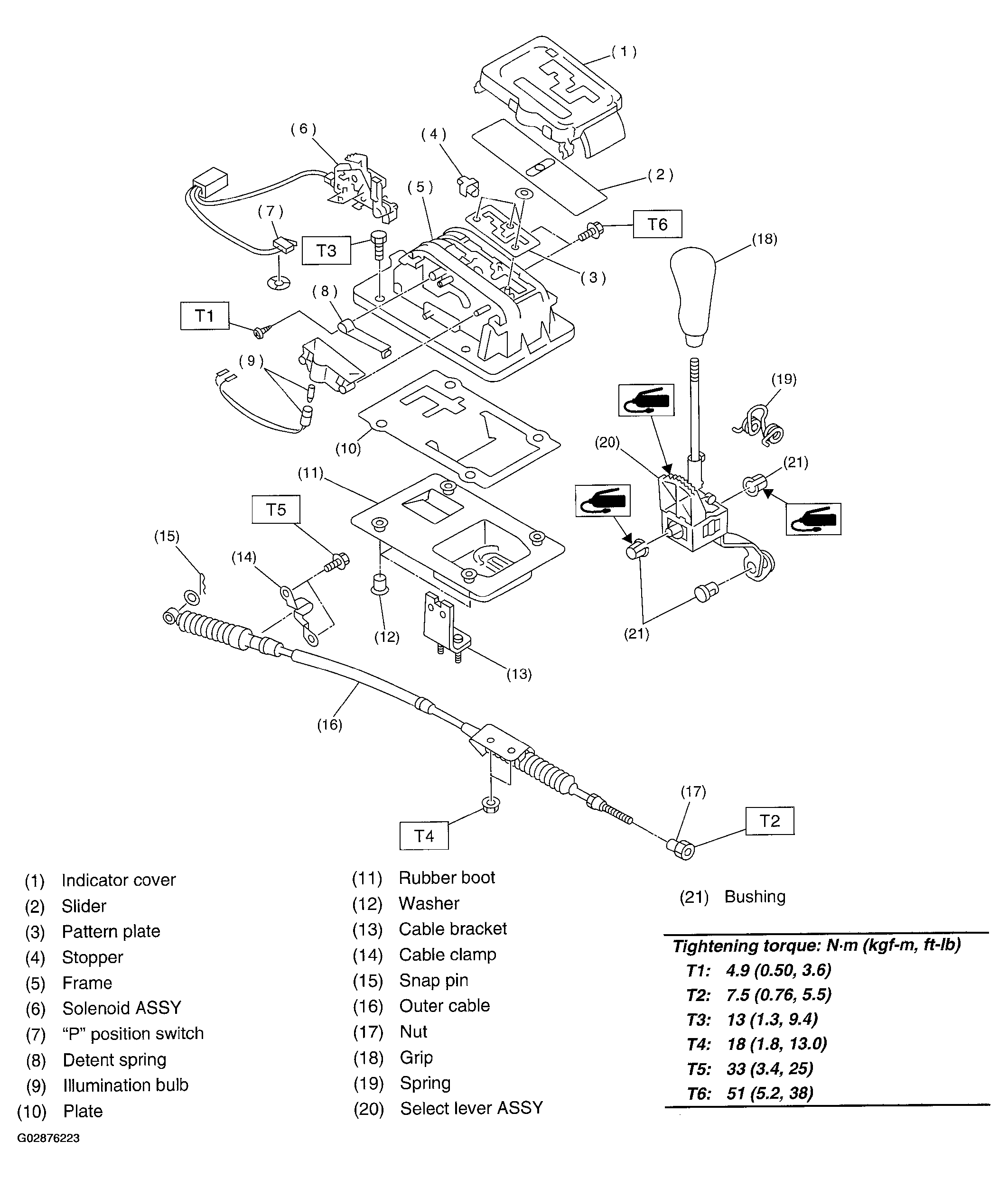

Fig 1: Exploded View Of AT Select Lever (Except Sport Shift Model) Component
G02876223Courtesy of SUBARU OF AMERICA, INC.
