At Select Lever (Sport Shift Model)

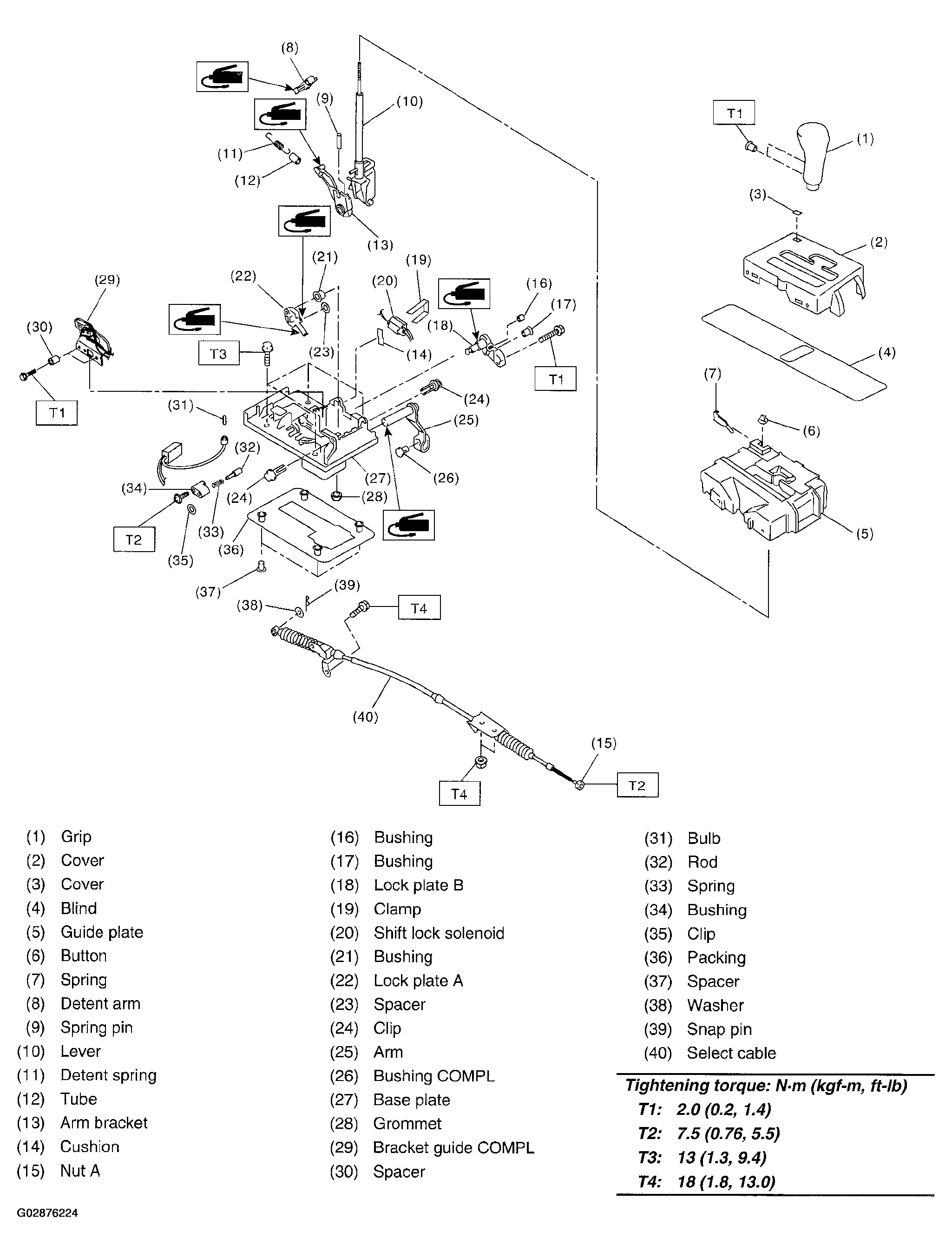

Fig 1: Exploded View Of AT Select Lever (Sport Shift Model) Component
G02876224Courtesy of SUBARU OF AMERICA, INC.
