DTC 41: Abnormal Abs Control Module
>>
Wiring Diagram:
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Wiring Diagram:

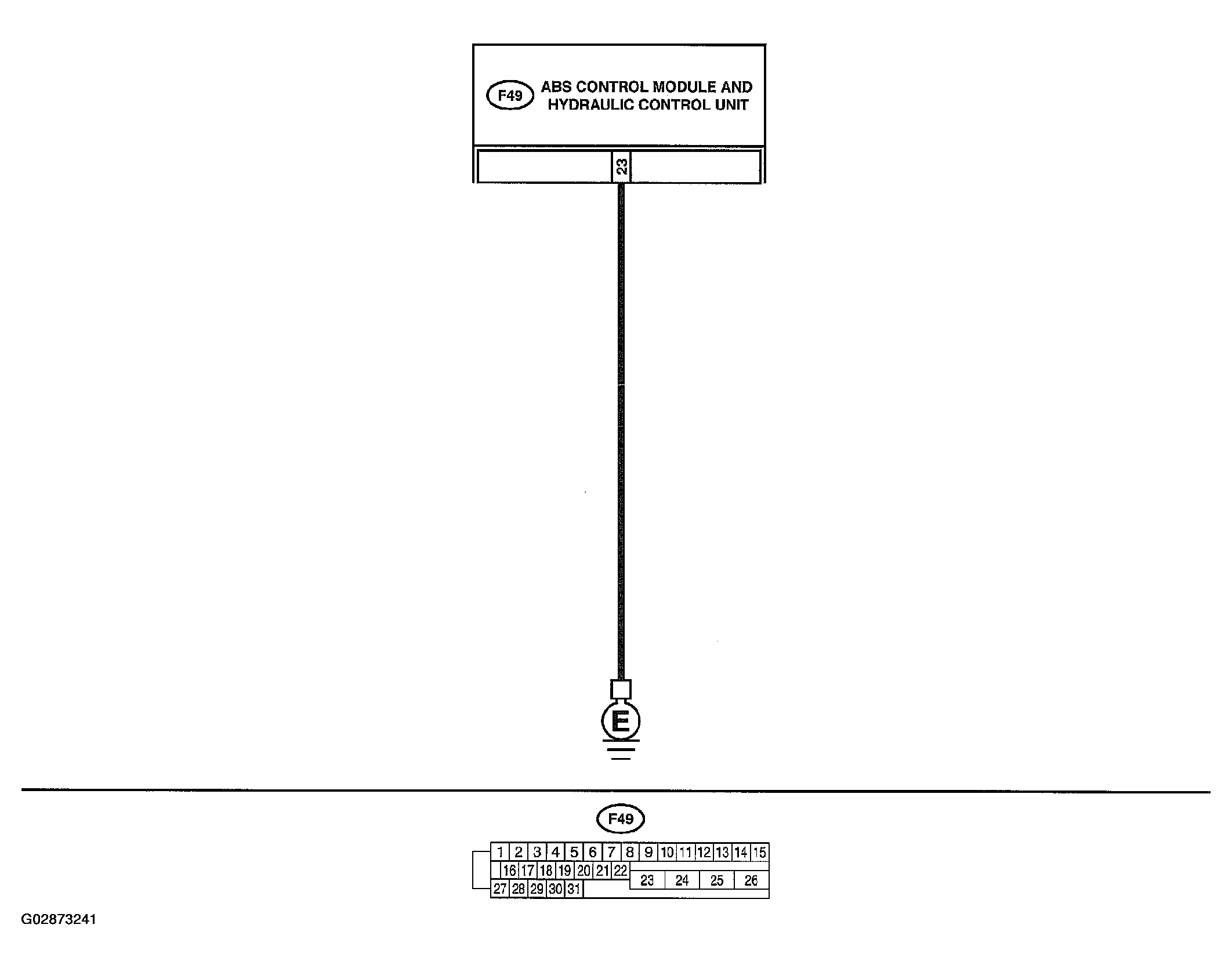

Fig 1: DTC 41: Abnormal ABS Control Module - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
