Data Link Connector

CAUTION: Do not connect any scan tools other than OBD-II general scan tools and Subaru Select Monitor, because the circuit for the Subaru Select Monitor may be damaged.

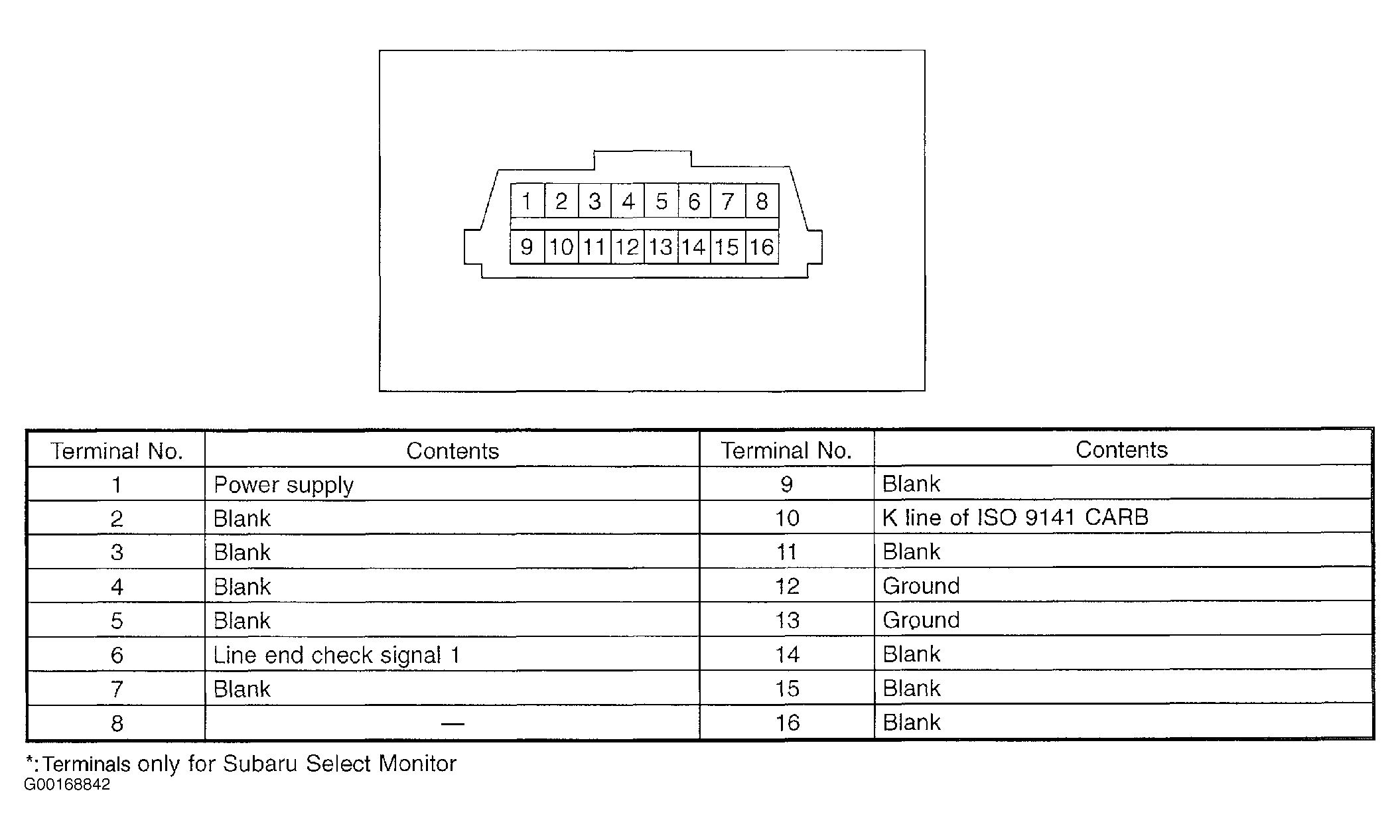

This connector is used both for OBD-II general scan tools and Subaru Select Monitor. Terminal No. 4 to No. 6 of the data link connector is used for the Subaru Select Monitor signal. See Fig 1 .

Fig 1: Identifying Data Link Connector & Subaru Select Monitor Terminals

Courtesy of SUBARU OF AMERICA, INC.
