Led Operation Mode

  1. On <Main Menu> display screen, select {Each System Check} and press [YES] key.
  2. On <System Selection Menu> display screen, select {Engine Control System} and press [YES] key.
  3. Press [YES] key after displayed information of engine type.
  4. On <Engine Diagnosis> display screen, select {Current Data Display & Save} and press [YES] key.
  5. On <Data Display Menu> display screen, select {Data & LED Display} and press [YES] key.
  6. Using scroll key, move display screen up or down until desired support data is shown, see Fig 1 .

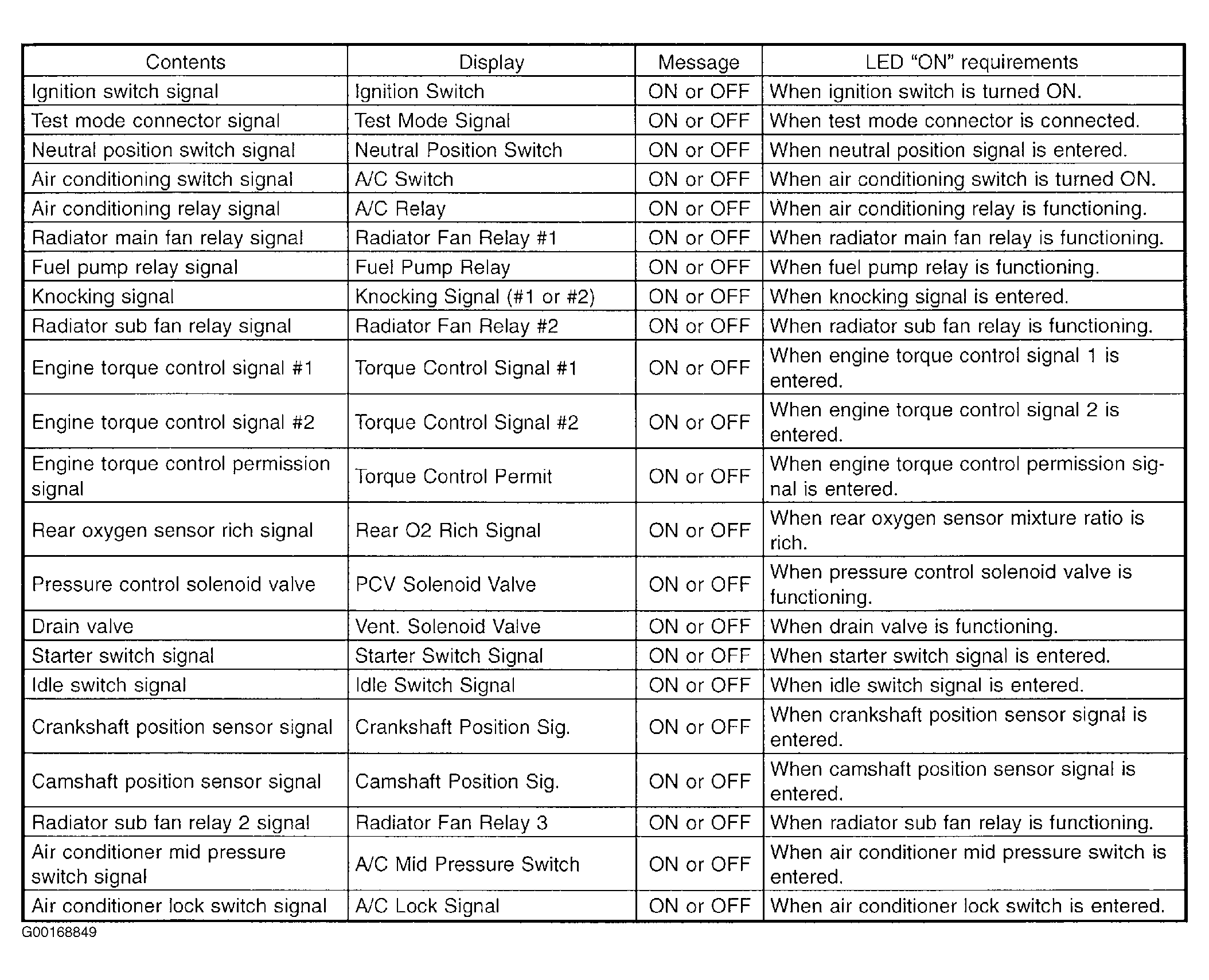

Fig 1: LED Operation Mode Support Data
G00168849Courtesy of SUBARU OF AMERICA, INC.
