Steering Gearbox: Adjustment

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Adjust the front toe. < Ref. to WHEEL AND TIRE SYSTEM .>
Standard of front toe:

IN 3 - OUT 3 mm (IN 0.12 - OUT 0.12 in)

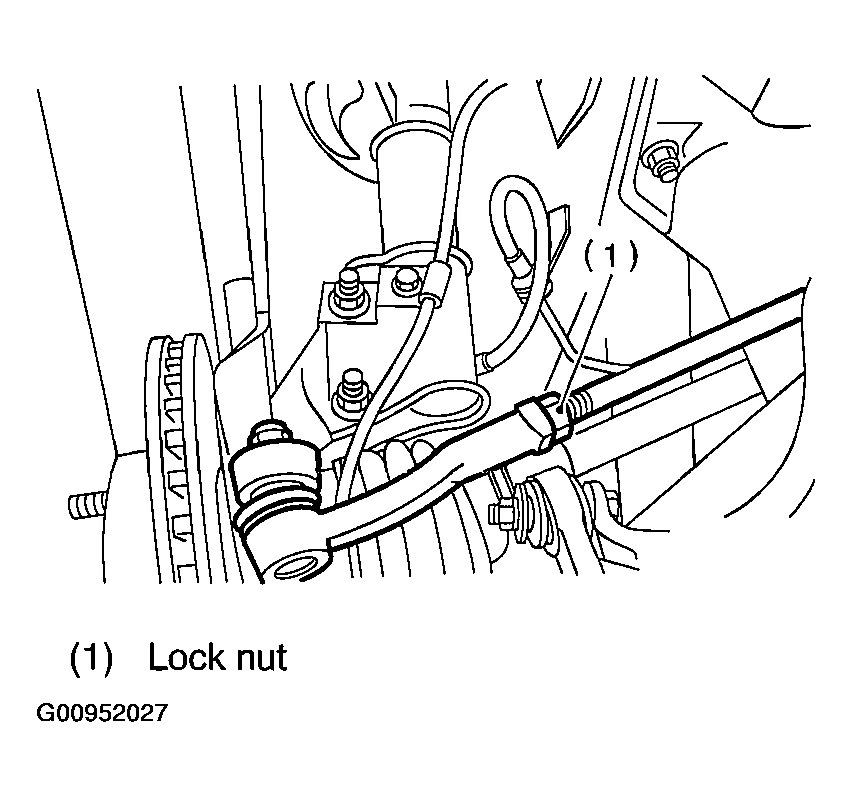

Fig 1: Identifying Lock Nut
Courtesy of SUBARU OF AMERICA, INC.
Adjust the steering angle of wheels.
Standard of steering angle:

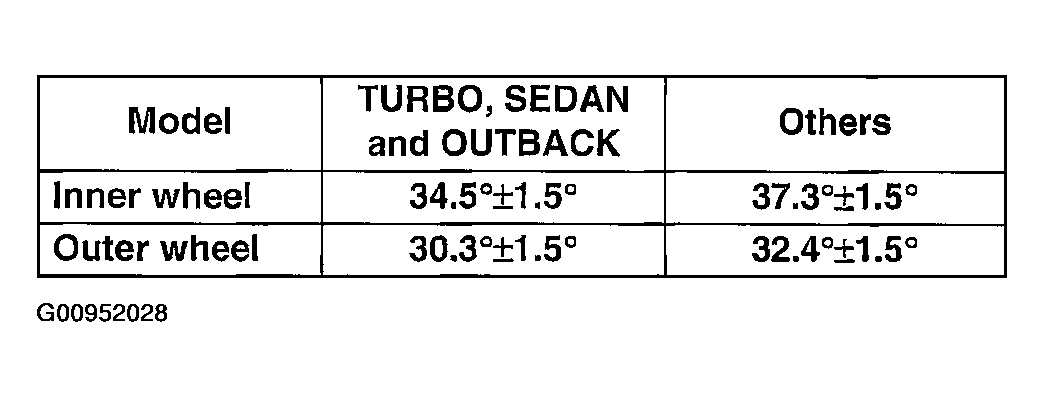

Fig 2: Steering Angle Specification Chart
Courtesy of SUBARU OF AMERICA, INC.
If the steering wheel spokes are not horizontal when wheels are set in the straight ahead position, and error is more than 5° on the periphery of steering wheel, correctly re-install the steering wheel.

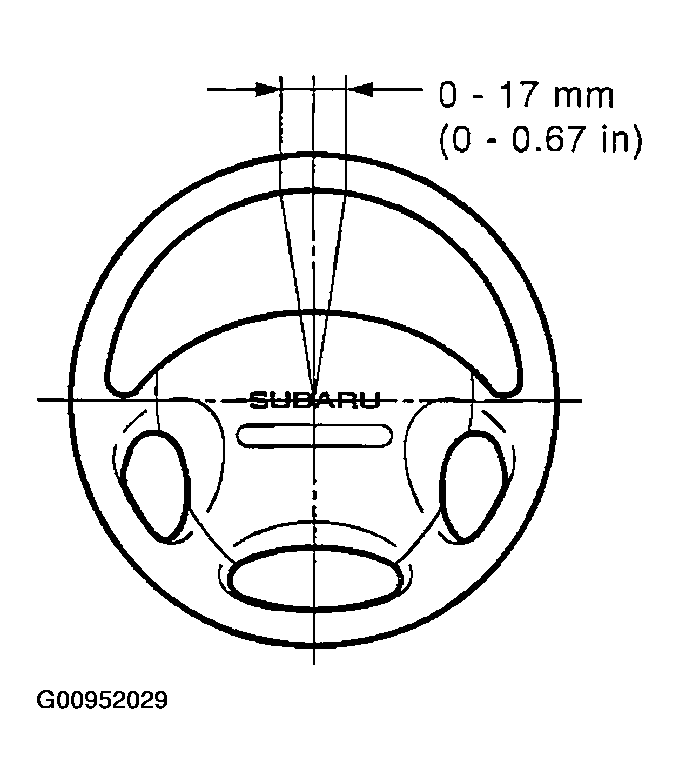

Fig 3: Identifying Steering Wheel Horizontal Adjusting Dimension
Courtesy of SUBARU OF AMERICA, INC.
If the steering wheel spokes are not horizontal with vehicle set in the straight ahead position after this adjustment, correct it by turning the right and left tie-rods in opposite direction by same angle.
