3.0 L Model

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install reservoir tank to bracket.
  2. Connect return hose and suction hose to reservoir tank.

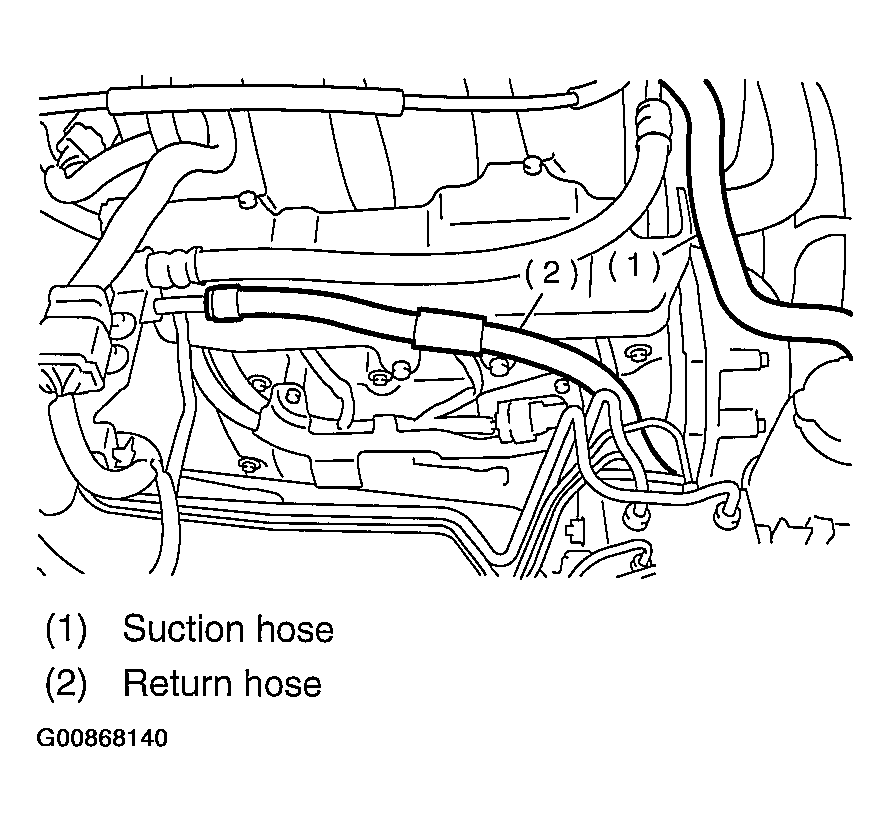

    Fig 1: Connecting Return Hose & Suction Hose To Reservoir Tank (3.0 L Model)
    G00868140Courtesy of SUBARU OF AMERICA, INC.
  3. Feed the specified power steering fluid. Refer to POWER STEERING FLUID .
