Subaru
>>
2003
>>
Outback Base, 4D Sedan
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Trans (Diagnostics)
>>
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
>>
DTC 38: Torque Control Signal
>>
Diagnostic Procedure:
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure:

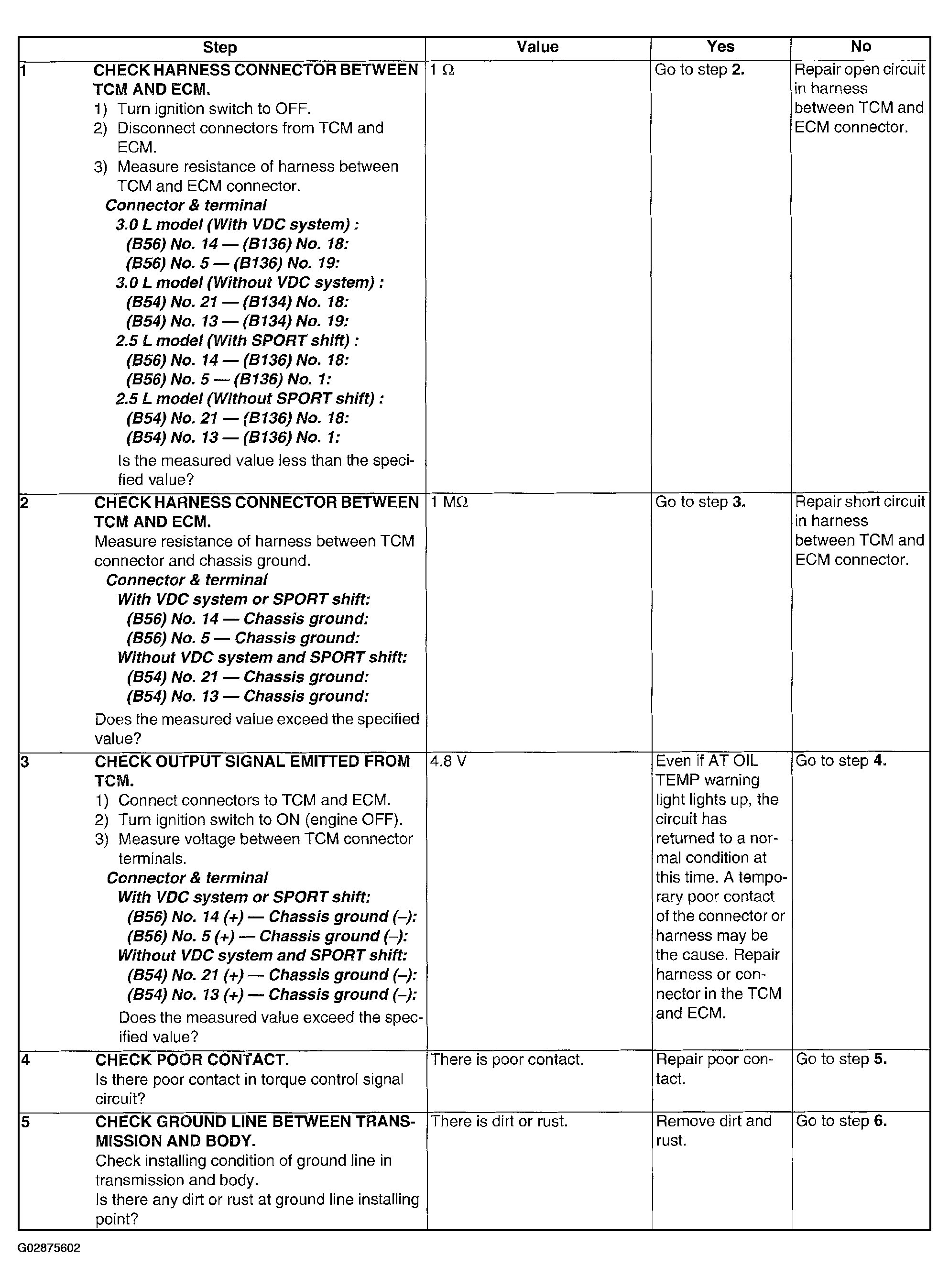

Fig 1: DTC 38 Torque Control Signal Diagnostic Procedure Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

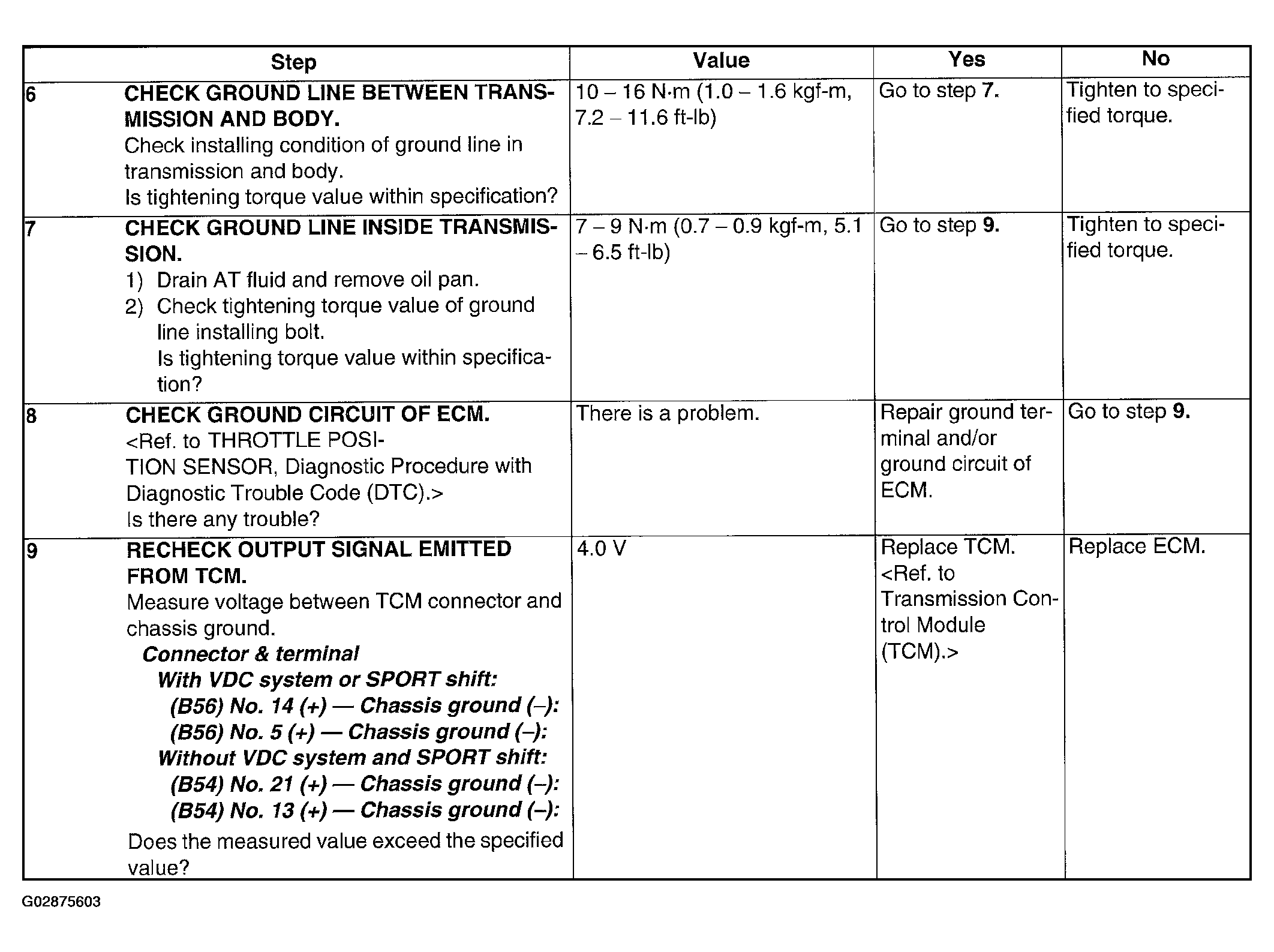

Fig 2: DTC 38 Torque Control Signal Diagnostic Procedure Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
