Subaru
>>
2003
>>
Outback Base, 4D Wagon, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Abs (Diagnostics)
>>
Diagnostics Chart with Subaru Select Monitor
>>
Communication For Initializing Impossible
>>
Wiring Diagram:
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Wiring Diagram:

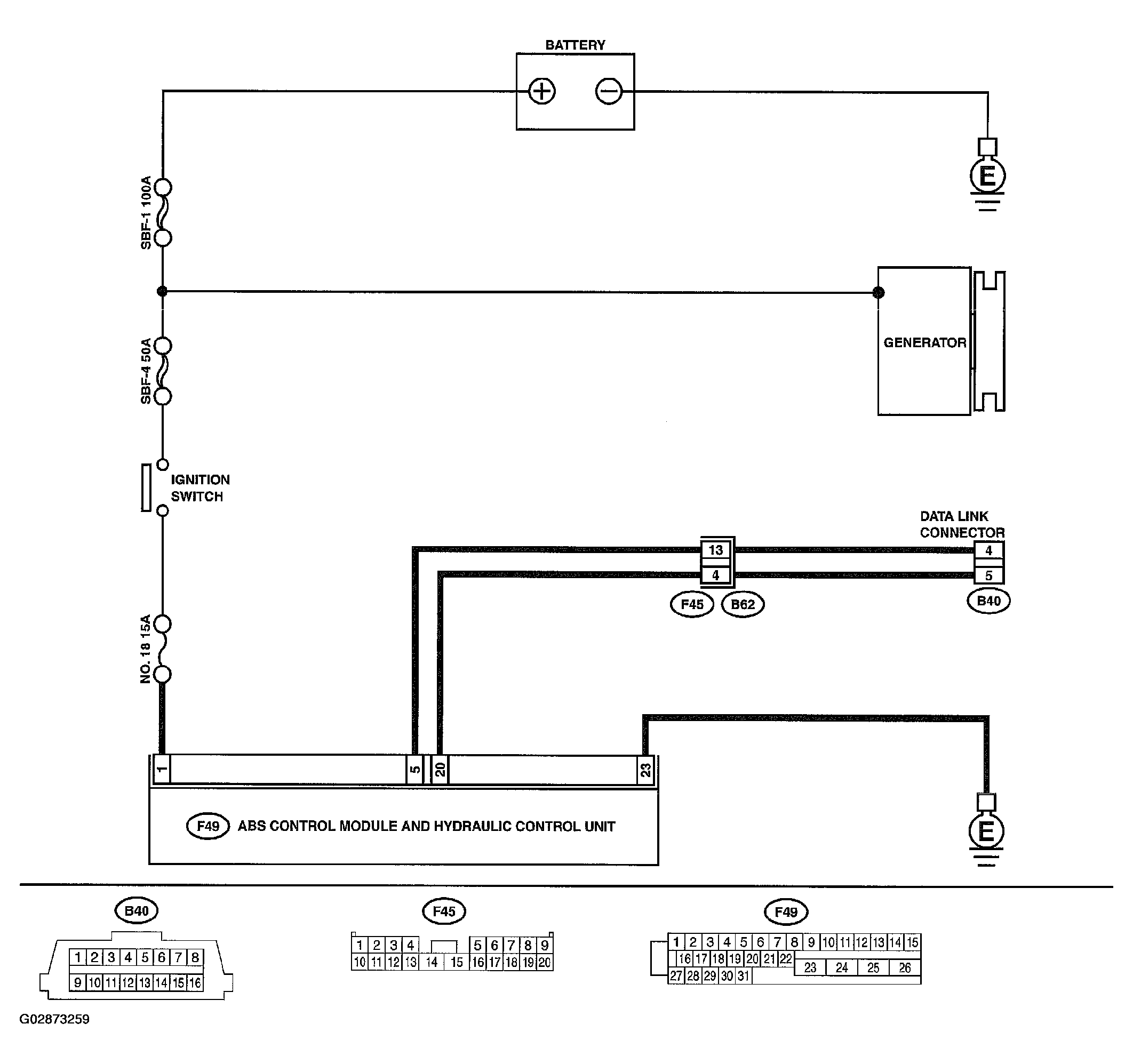

Fig 1: Communication For Initializing Impossible - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
