Front Chain Cover

Front Chain Cover

REMOVAL
1. Remove crankshaft pulley.
2. Remove front chain cover.

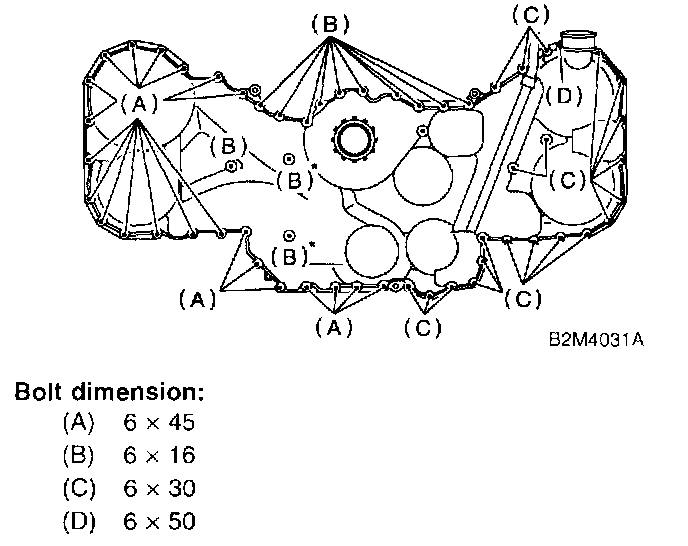

NOTE: There are four different types of chain cover mounting bolts. Sort them into separate containers to avoid confusion at installation.

Bolt dimension:
(A) 6 X 45
(B) 6 x 1 6
(C) 6 x 30
(D) 6 x 50
*: Sealing washer

INSTALLATION

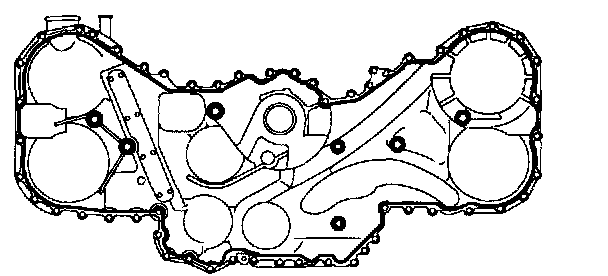

1. Remove old fluid gasket on the matching surface, and degrease it.





2. Apply fluid gasket to the mating surface of front chain cover.
Fluid gasket: THREE BOND 1280B
Fluid gasket application diameter: 2.5 +/- 0.5 mm (0.098 +/- 0.020 inch)





3. Install front chain cover. Temporarily tighten the bolts.

CAUTION: Do not confuse the mounting positions of the bolts.

Bolt dimension:
(A) 6 X 45
(B) 6x16
(C) 6 x 30
(D) 6 X 50
*: Sealing washer





4. Tighten the bolts in the numerical sequence shown in figure.
Tightening torque: 6.6 Nm (0.67 kgf-m, 4.8 ft. lbs.)
5. Install crankshaft pulley.

INSPECTION
Check the cover surface for flaws and dents. Check the cover mating surface and the mounting point of crankshaft pulley for oil leaks.
