Power Transistor HVAC: Service and Repair

Heater Blower Resistor

REMOVAL

1. Remove glove box.

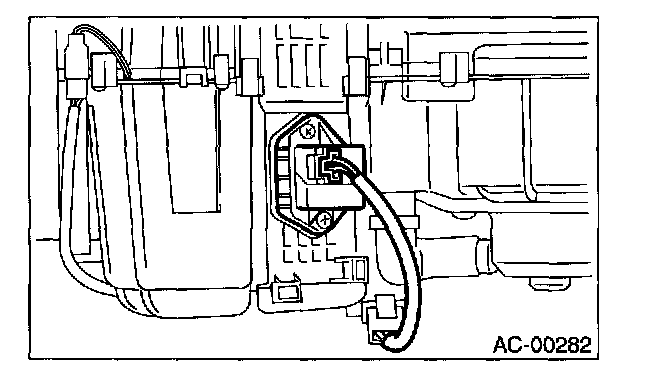

2. Disconnect power transistor connector.




3. Loosen 2 screws to remove power transistor.

INSTALLATION

Install in the reverse order of removal.
