Power Transistor HVAC: Testing and Inspection

Heater Blower Resistor

INSPECTION

MANUAL A/C

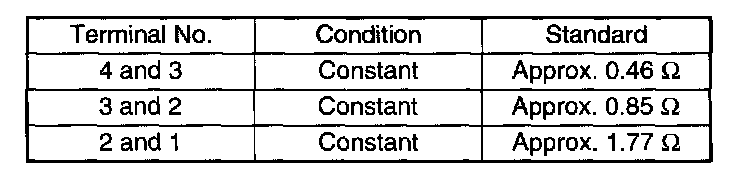

Measure switch resistance.




If NG, replace the blower resistor.
