Wave Form Measurement

Transmission Control Module (TCM) 1/0 Signal

MEASUREMENT
Only for models with VDC system, measure input/output signal voltage.

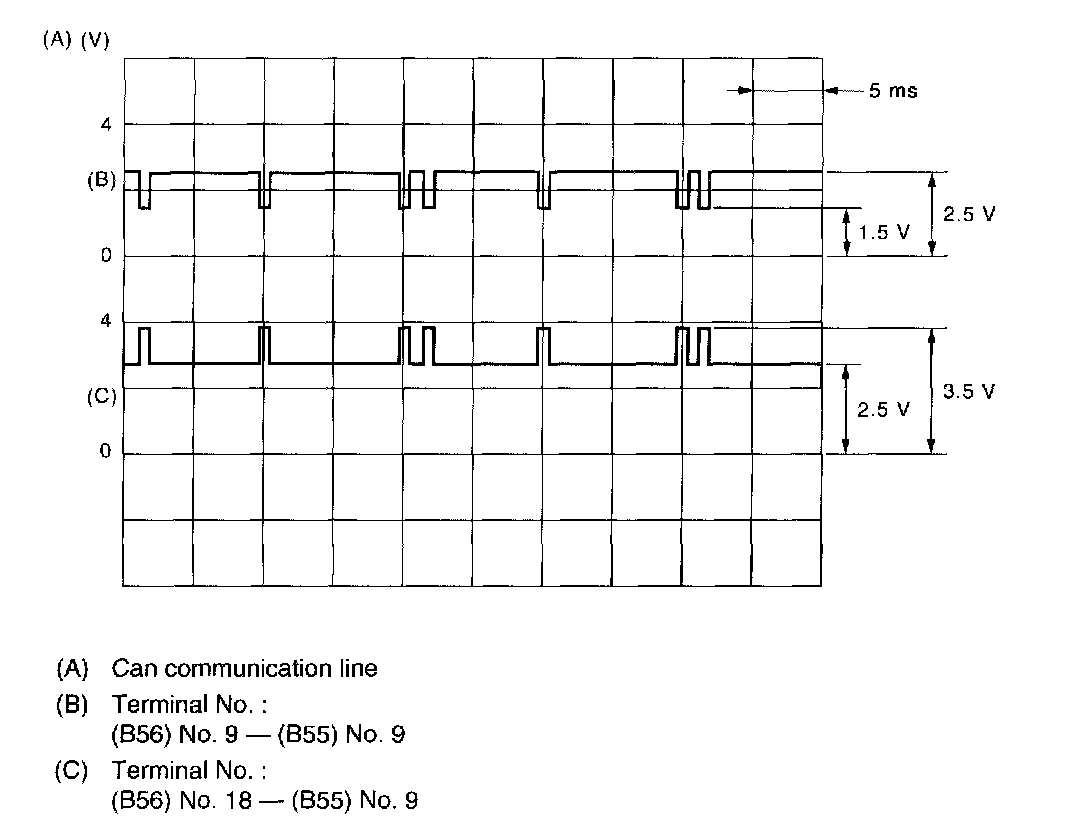

WAVEFORM
