Sub Frame: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Lift-up the vehicle.
Remove the under cover.
Remove the bolt cover.

Fig 1: Removing Bolt Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the clip.

Fig 2: Removing Clip
Courtesy of SUBARU OF AMERICA, INC.
Remove the sub frame.
NOTE: Loosen bolt (1) and leave a few threads caught, then remove the bolts in the order of (2), (3), (4), (5), and (6).

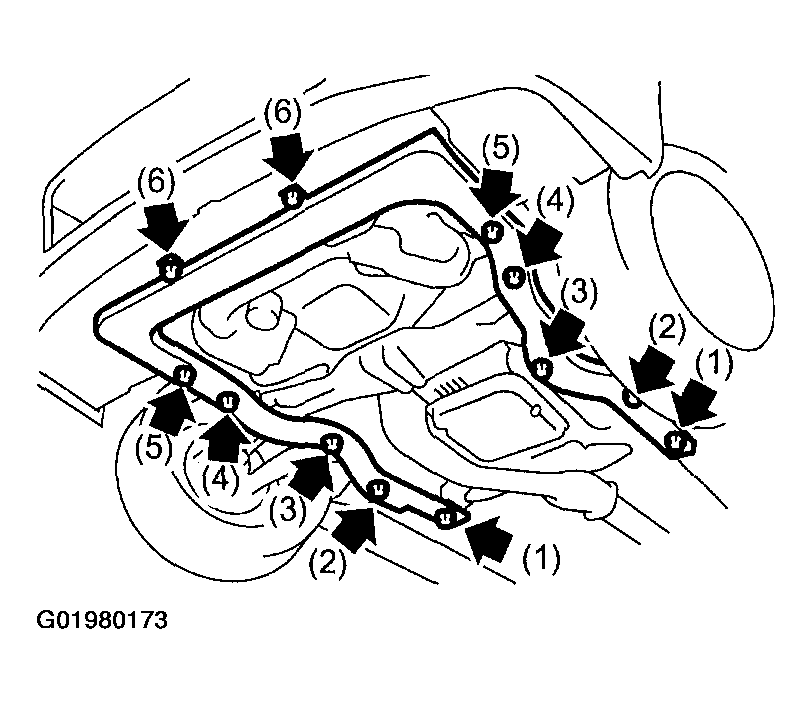

Fig 3: Removing Sub Frame Bolts In Indicated Order
Courtesy of SUBARU OF AMERICA, INC.
