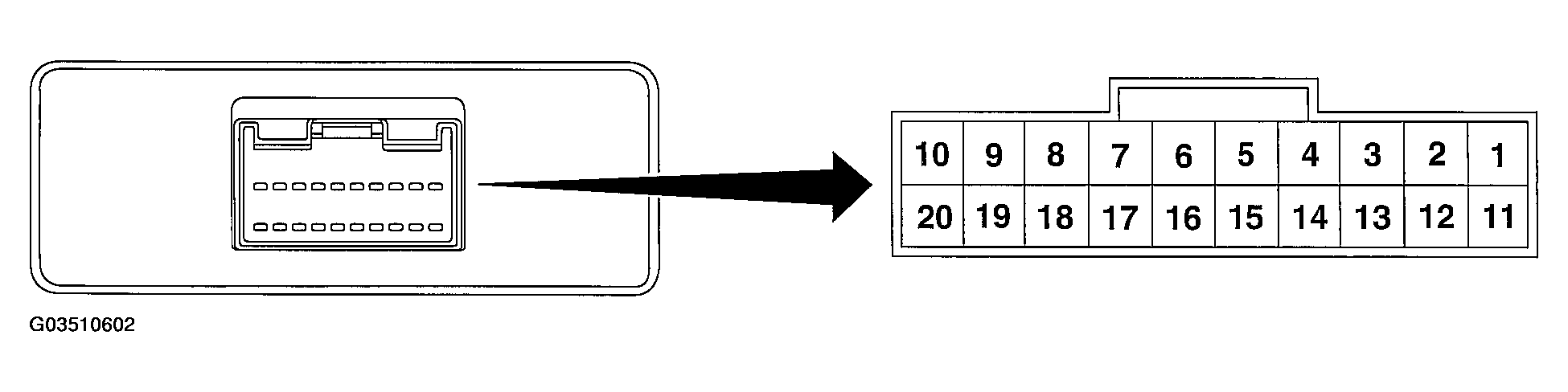

| Cruise Control Indicator Light |
1 |
- Battery voltage is present when main switch is turned OFF.
- "0" volt is present when main switch is turned ON.
|
| Inhibitor switch (AT) |
4 |
- Battery voltage is present when selector lever is other than "P" or "N" position.
- "0" volt is present when selector lever is set to "P" or "N" position.
|
| Cruise set indicator light |
3 |
- "0" volt is present when cruise control is setted (cruise control is operating).
- Battery voltage is present when cruise control is not setted (cruise control is not operating).
|
| Motor B |
5 |
- ON-and-OFF ("0"-and-battery voltage) operation is alternately repeated while cruise control is operating.
- "0" volt is present when main switch is turned OFF.
|
| Ground |
6 |
|
| Motor A |
7 |
- ON-and-OFF ("0"-and-battery voltage) operation is alternately repeated while cruise control is operating.
- "0" volt is present when main switch is turned OFF.
|
| RESUME/ACCEL switch |
9 |
- Battery voltage is present when command switch is turned to RESUME/ACCEL position.
- "0" volt is present when command switch is released.
|
| SET/COAST switch |
10 |
- Battery voltage is present when command switch is turned to SET/COAST position.
- "0" volt is present when command switch is released.
|
| Main power supply |
11 |
- Battery voltage is present when main switch is turned ON.
- "0" volt is present when main switch is turned OFF.
|
| Ignition switch |
12 |
- Battery voltage is present when ignition switch is turned ON.
- "0" volt is present when ignition switch is turned OFF.
|
| Motor C |
13 |
- ON-and-OFF ("0"-and-battery voltage) operation is alternately repeated while cruise control is operating.
- "0" volt is present when main switch is turned OFF.
|
| Motor clutch |
14 |
- ON-and-OFF ("0"-and-battery voltage) operation is alternately repeated while cruise control is operating.
- "0" volt is present when vehicle is stopped.
|
| Cruise control main switch |
15 |
- Battery voltage is present during pressing the main switch.
- "0" volt is present when main switch is released.
|
| Brake switch |
16 |
Leave clutch pedal released (MT), while cruise control main switch is turned ON. Then check that;
- Battery voltage is present when brake pedal is released.
- "0" volt is present when brake pedal is depressed.
Additionally only in MT vehicle, keep the cruise control main switch to ON and leave brake pedal released.
Then check that;
- Battery voltage is present when clutch pedal is released.
- "0" volt is present when clutch pedal is depressed.
|
| Data link connector |
17 |
|
| Data link connector |
18 |
|
| Vehicle speed sensor (MT) TCM (AT) |
19 |
Lift-up the vehicle until all four wheels are raised off ground, and then rotate any wheel manually.
Approx. "5" and "0" volt pulse signals are alternately input to cruise control module. |
| Stop light switch |
20 |
Turn ignition switch to OFF.
Then check that;
- Battery voltage is present when brake pedal is depressed.
- "0" volt is present when brake pedal is released.
|
|
NOTE:
Voltage at terminals 5, 7, 13 and 14 cannot be checked unless vehicle is driving by cruise control operation.
|
