Without SUBARU Select Monitor

After calling up a diagnostic trouble code (DTC), disconnect diagnosis connector terminal 8 from diagnosis terminal.

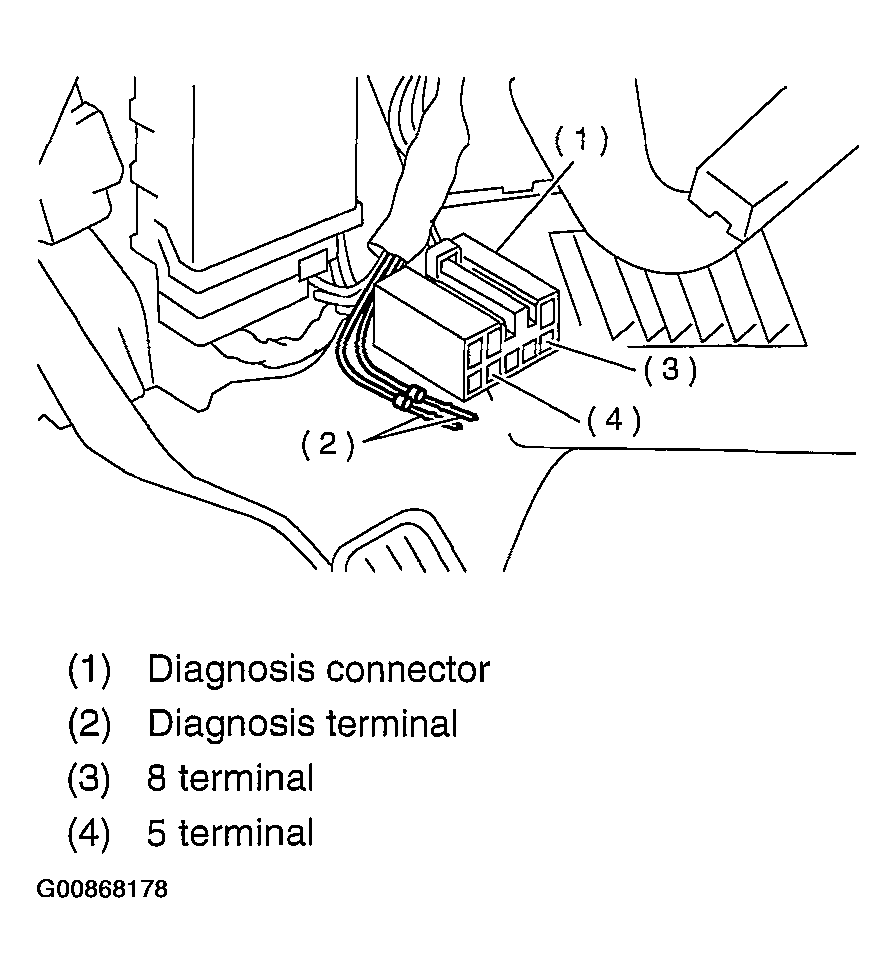

Fig 1: Disconnecting Diagnosis Connector Terminal 8 From Diagnosis Terminal
Courtesy of SUBARU OF AMERICA, INC.
Repeat 3 times within approx. 12 seconds; connecting and disconnecting terminal 8 and diagnosis terminal for at least 0.2 seconds each time.

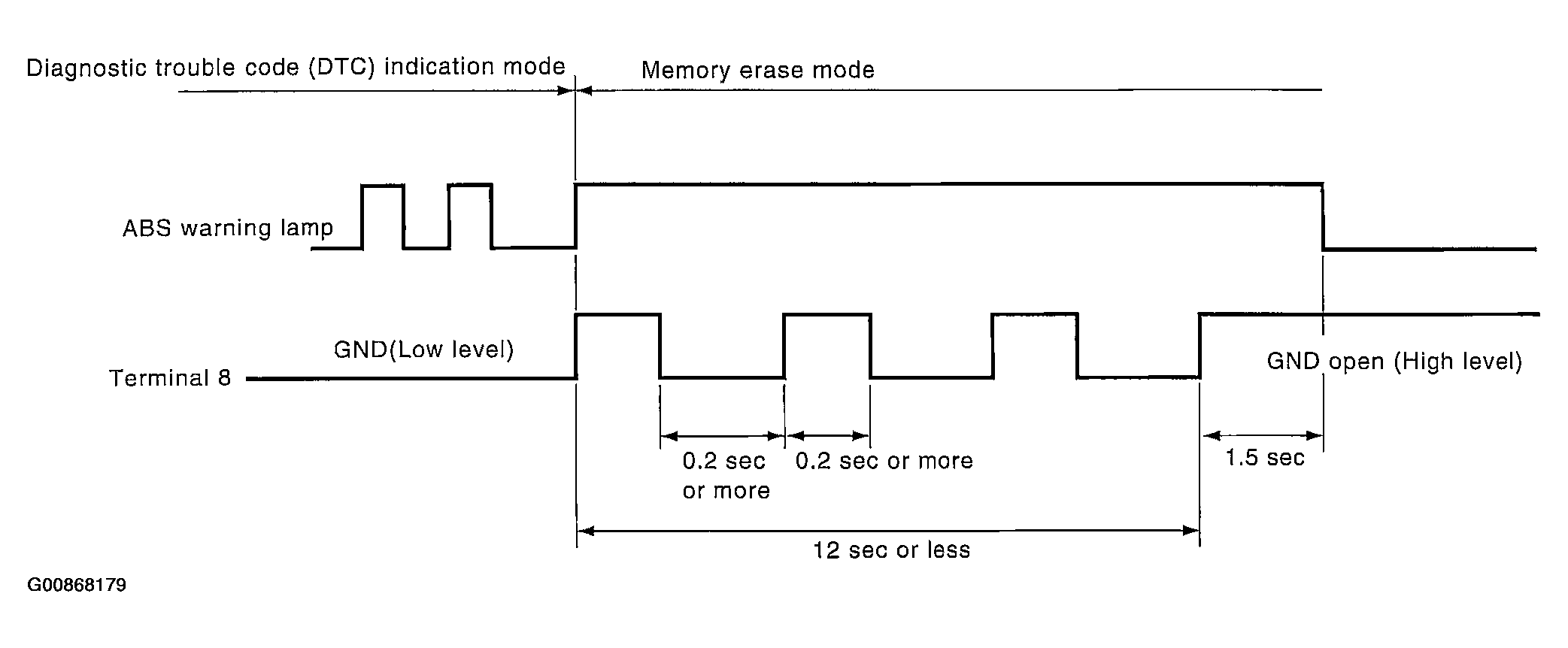

Fig 2: Identifying DTC Indication & Clear Memory Modes
Courtesy of SUBARU OF AMERICA, INC.

NOTE: After diagnostics is completed, make sure to clear memory. Make sure only start code (11) is shown after memory is cleared.
