Diagnostic Method

Abnormality Judgment
Judge NG when the continuous time of completing all the malfunction criteria below becomes more than 2560 millisecond (10 cycles).
Judgment Value

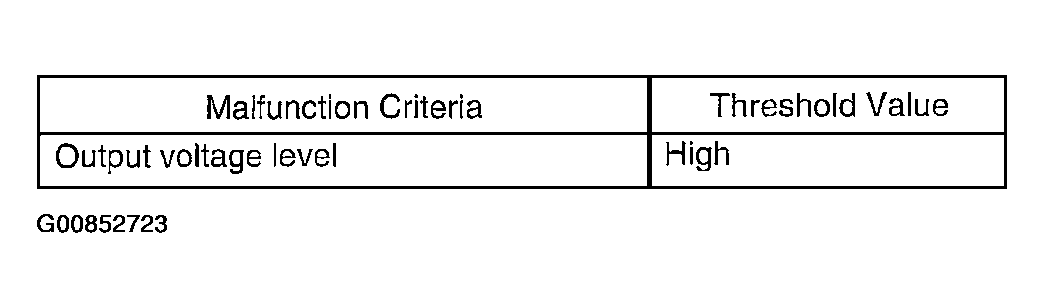

Fig 1: Threshold Valve Table (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Normality Judgment
Judge OK and clear the NG when all the malfunction criteria below are completed.
Judgment Value

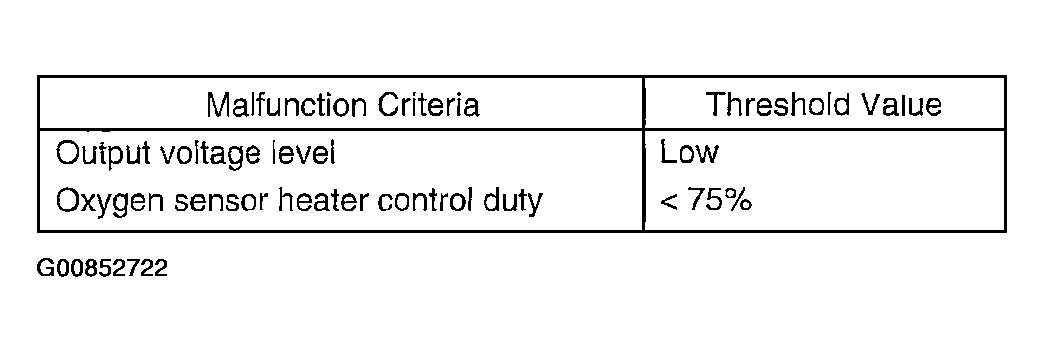

Fig 2: Threshold Valve Table (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
