Diagnostic Method

Judge NG when the continuous time of completing the malfunction criteria below becomes more than 0.5 seconds. Judge OK and clear the NG when the malfunction criteria below are not completed.

• Judgment Value

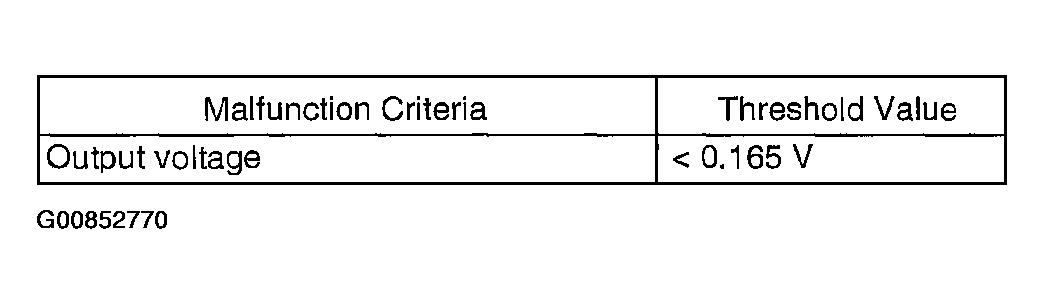

  Fig 1: Threshold Valve Table

  Courtesy of SUBARU OF AMERICA, INC.
