Diagnostic Method

Abnormality Judgment
Judge NG when the continuous time of completing the malfunction criteria below becomes more than the time needed for diagnosis (2.5 seconds).
Judgment Value

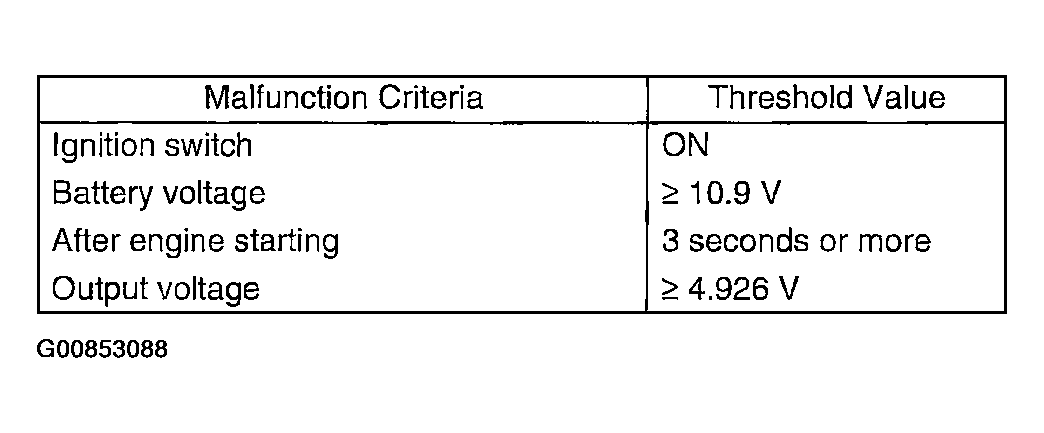

Fig 1: Threshold Valve Table (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Time Needed for Diagnosis: 2.5 seconds

Malfunction Indicator Light Illumination: Illuminates when malfunction occurs in 2 continuous driving cycles.
Normality Judgment
Judge OK and clear the NG when the malfunction criteria below are completed.
Judgment Value

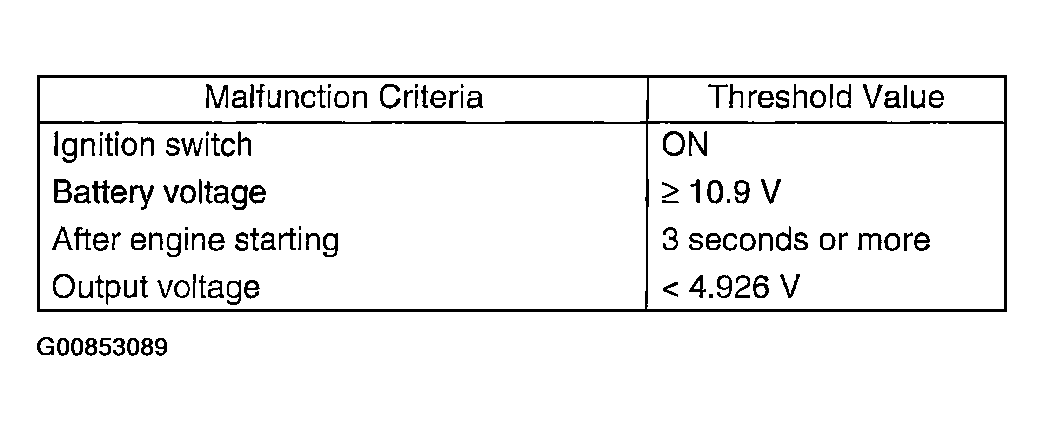

Fig 2: Threshold Valve Table (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
