Diagnostic Method

Calculate the Max. value (delfimax) and cumulative value (sumfl) of output voltage variation of fuel level sensor during 12.24 seconds. Judge it normal when both max. and cumulative values are not over the threshold value. Otherwise, when either of them is over the threshold value, count the diagnosis counter up. And judge NG if the counter indicated 4 counts.

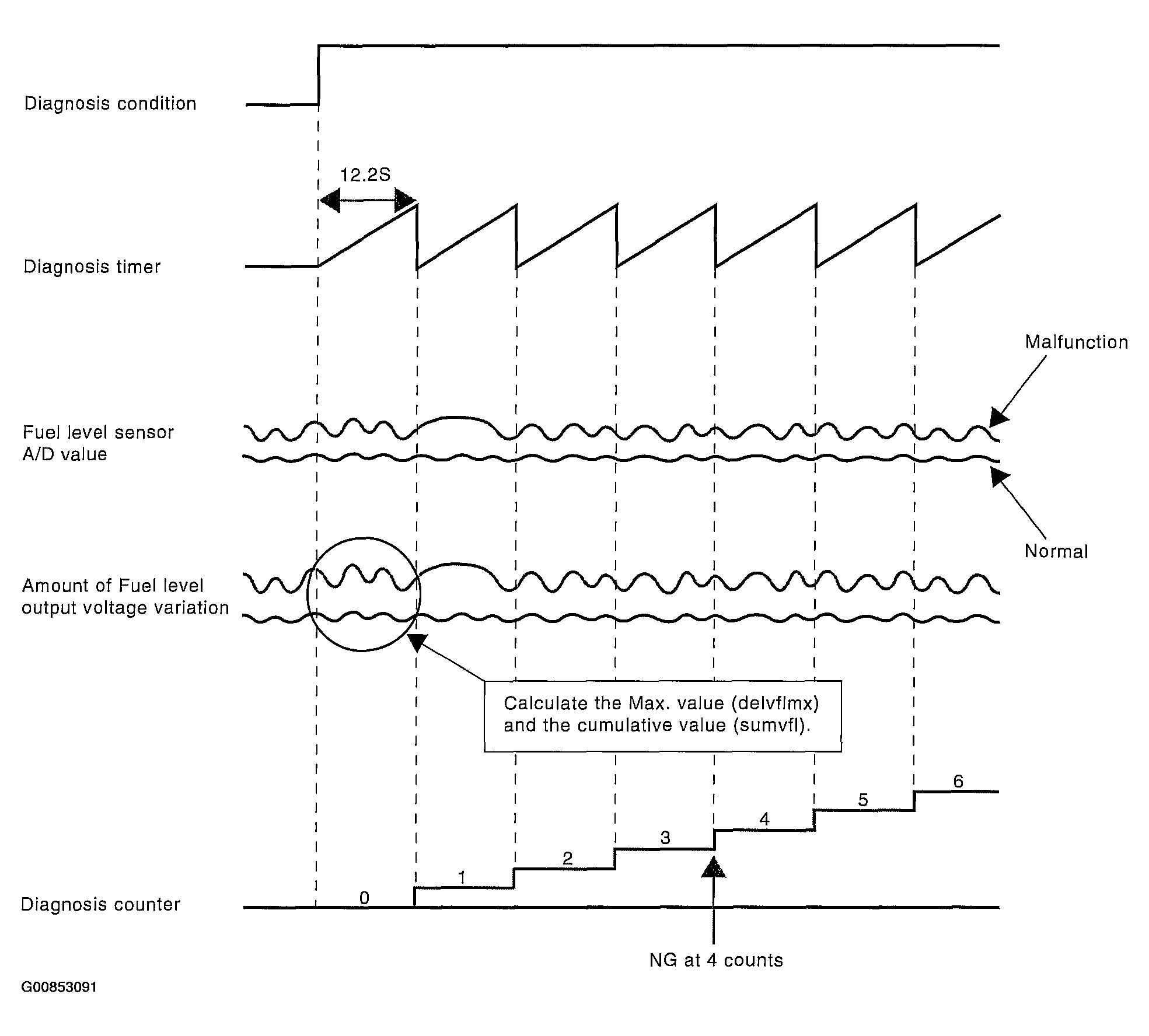

Fig 1: Output Voltage Blinking Patterns

Courtesy of SUBARU OF AMERICA, INC.

• Abnormality Judgment

  Judge NG when the malfunction criteria below are completed.

• Judgment Value

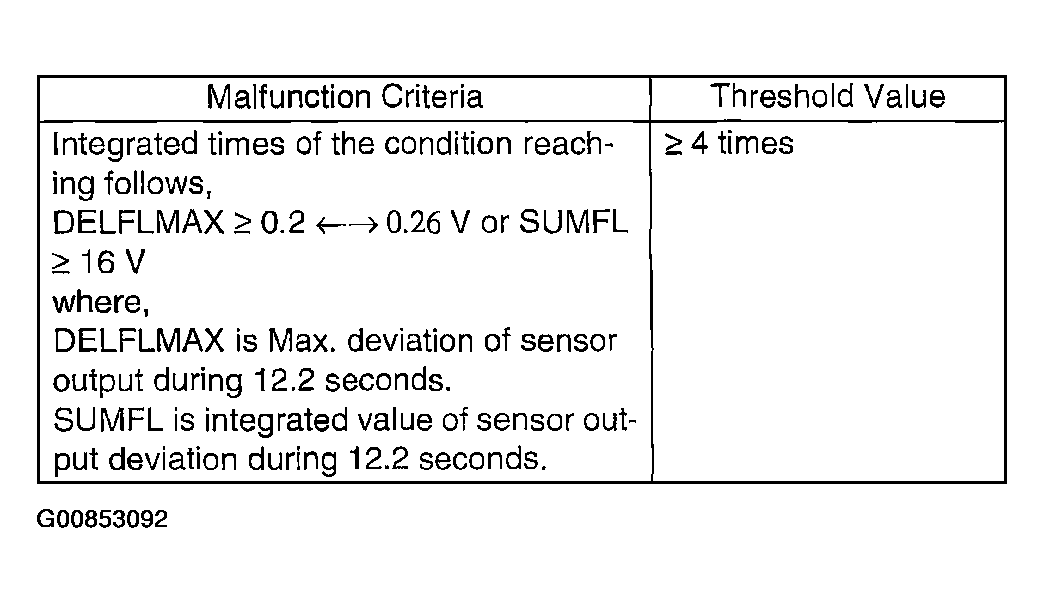

  Fig 2: Threshold Valve Table

  Courtesy of SUBARU OF AMERICA, INC.

  Do not count the diagnosis counter up when the following conditions are completed during 12.3 seconds.

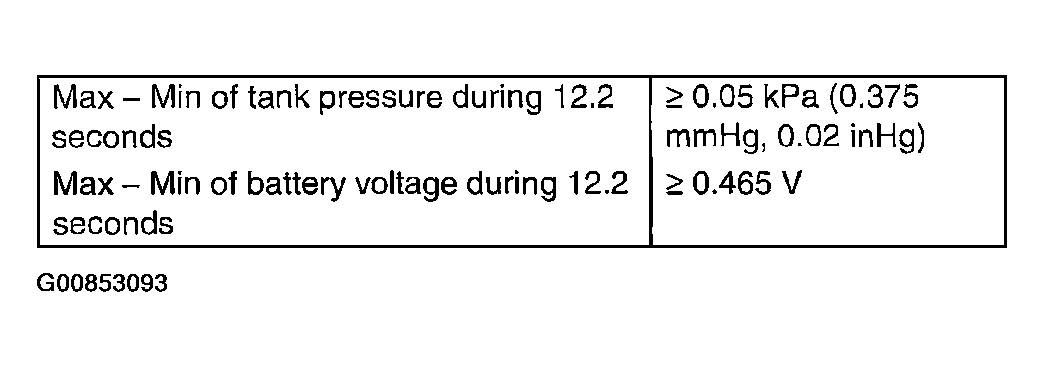

  Fig 3: Conditions Table

  Courtesy of SUBARU OF AMERICA, INC.

  Time Needed for Diagnosis:  12.2 seconds x 4 times

  Malfunction Indicator Light Illumination:  Illuminates when malfunction occurs in 2 continuous driving cycles.

• Normality Judgment

  Judge OK and clear the NG when the malfunction criteria below are completed.

• Judgment Value

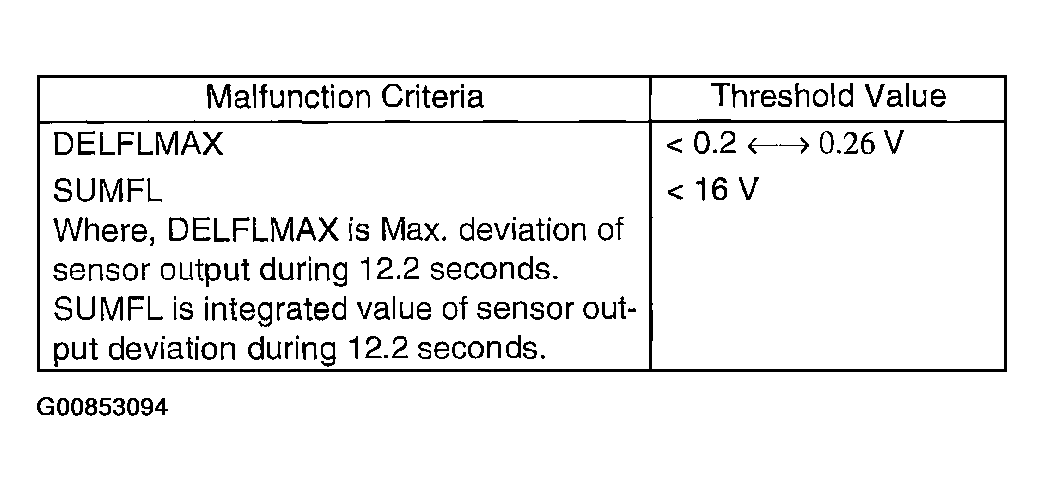

Fig 4: Threshold Valve Table

Courtesy of SUBARU OF AMERICA, INC.
