Diagnostic Method

Judge NG when the continuous time until completing the all malfunction criteria below becomes more than the time needed for diagnosis (2 seconds).

• Judgment Value

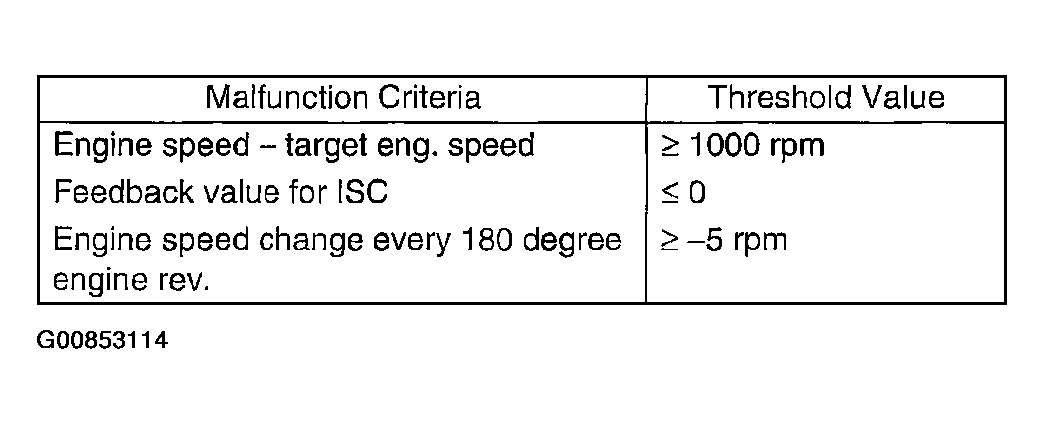

  Fig 1: Threshold Valve Table (1 Of 2)

  Courtesy of SUBARU OF AMERICA, INC.

  Time Needed for Diagnosis:  2 seconds

  Malfunction Indicator Light Illumination:  Illuminates as soon as malfunction occurs.

• Normality Judgment

  Judge OK and clear NG when the continuous time until completing the malfunction criteria below becomes more than the time needed for diagnosis (5 seconds).

• Judgment Value

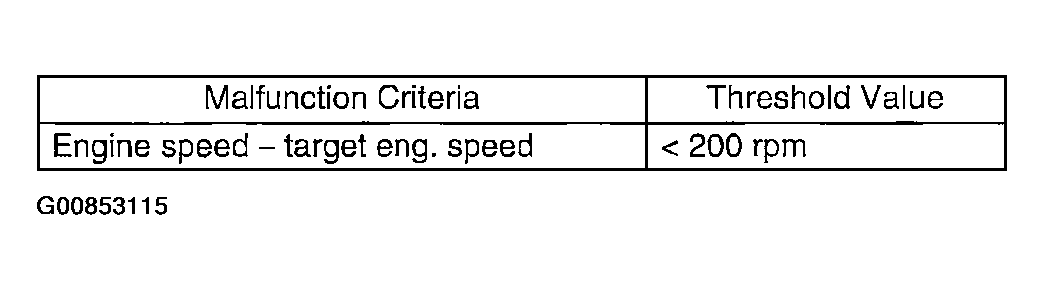

Fig 2: Threshold Valve Table (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
