Diagnostic Method

Abnormality Judgment
Judge NG when the continuous time of completing the malfunction criteria below becomes more than 3 seconds.
Judgment Value

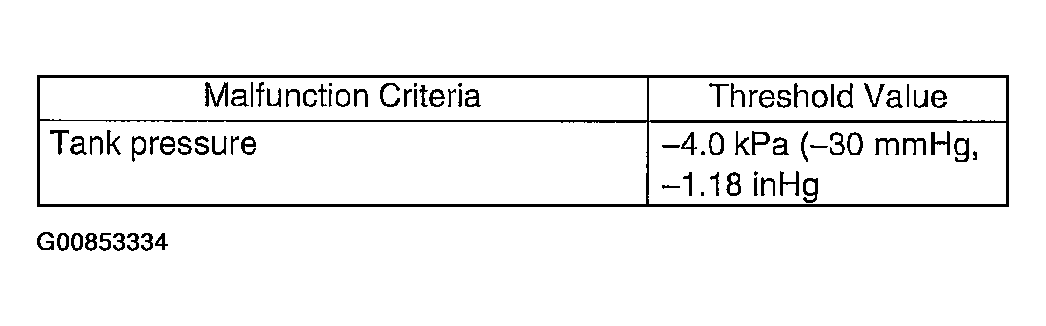

Fig 1: Threshold Valve Table (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Time Needed for Diagnosis: 3 seconds

Malfunction Indicator Light Illumination: Illuminates as soon as the malfunction occurs.
Normality Judgment
Judge OK and clear the NG when the malfunction criteria below are completed.
Judgment Value

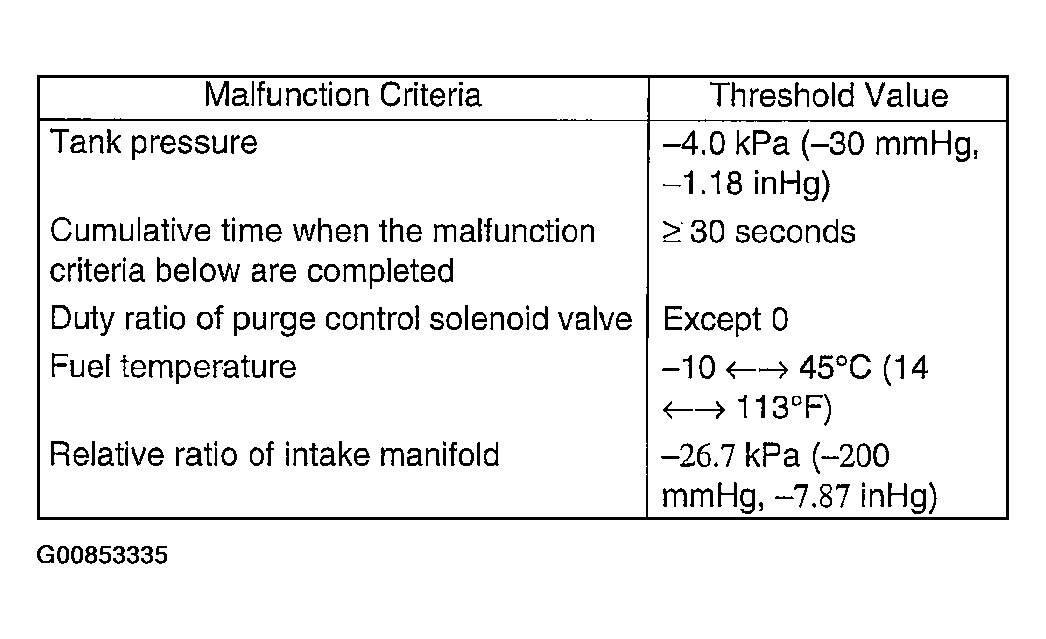

Fig 2: Threshold Valve Table (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
