Diagnostic Method

Judge NG when the continuous time of completing the malfunction criteria below becomes more than 5 seconds. Judge OK when it becomes less than 5 seconds.

• Judgment Value

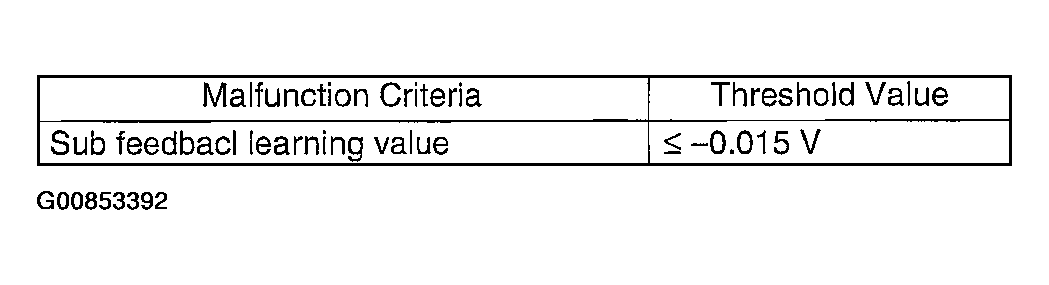

Fig 1: Threshold Valve Table

Courtesy of SUBARU OF AMERICA, INC.

Time Needed for Diagnosis:  5 seconds X1 time

Malfunction Indicator Light Illumination:  Illuminates when malfunction occurs in 2 continuous driving cycles.
