Judgment Value

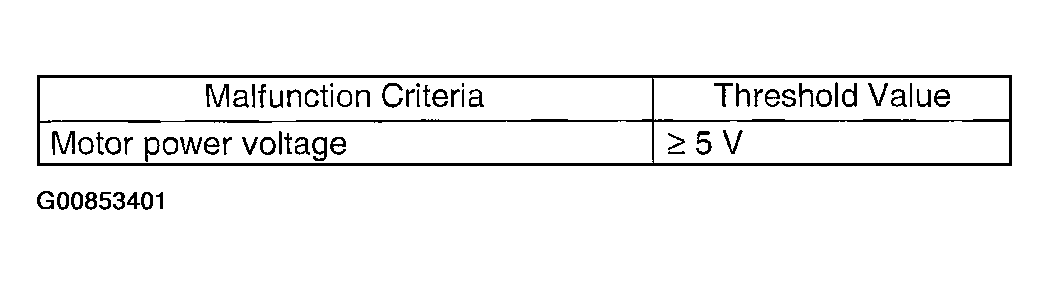

Fig 1: Threshold Valve Table

Courtesy of SUBARU OF AMERICA, INC.

Time Needed for Diagnosis:

• 400 milliseconds (For NG)
• 2000 milliseconds (For OK)

Malfunction Indicator Light Illumination:  Illuminates as soon as malfunction occurs.
