Diagnostic Method

• Abnormality Judgment

Judge OK and clear the NG when the malfunction criteria below are completed.

• Judgment Value

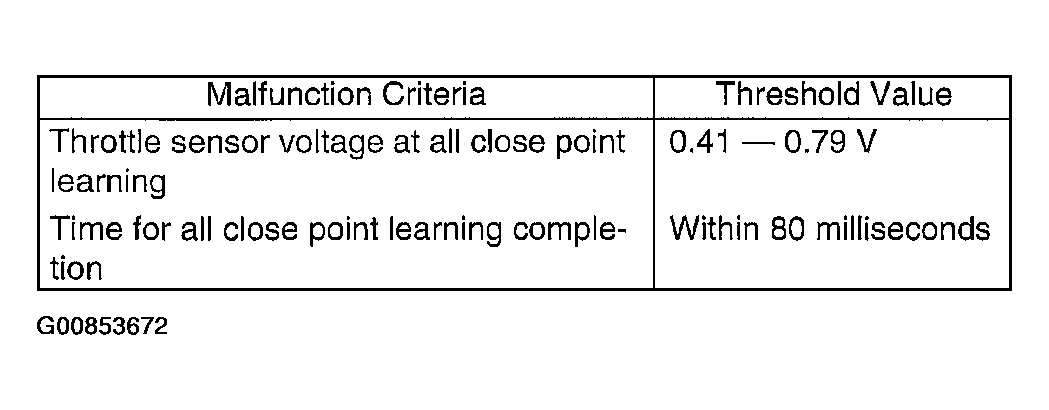

Fig 1: Threshold Valve Table

Courtesy of SUBARU OF AMERICA, INC.

Time Needed for Diagnosis:  None

Malfunction Indicator Light Illumination:  Illuminates as soon as malfunction occurs.
