Diagnostic Method

Abnormality Judgment
Judge NG when one of the malfunction criteria below is completed.
Judgment Value

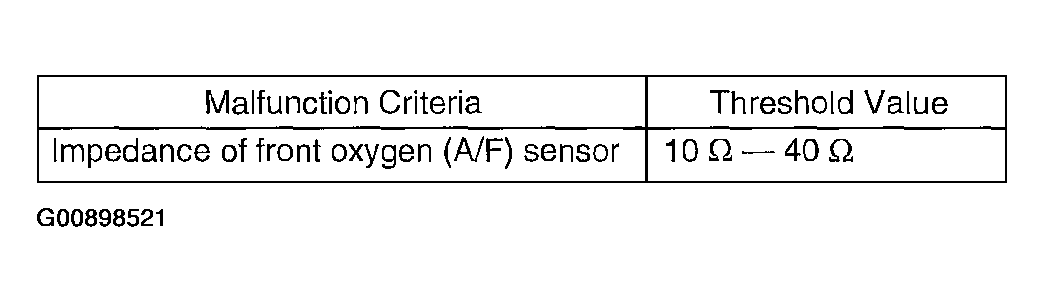

Fig 1: Threshold Value Table (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
1. Time Needed for Diagnosis:
  10 seconds
2. Malfunction Indicator Light Illumination:
  Illuminates when malfunction occurs in 2 continuous driving cycles.
Normality Judgment
Judge OK when all of the malfunction criteria below is completed.
Judgment Value

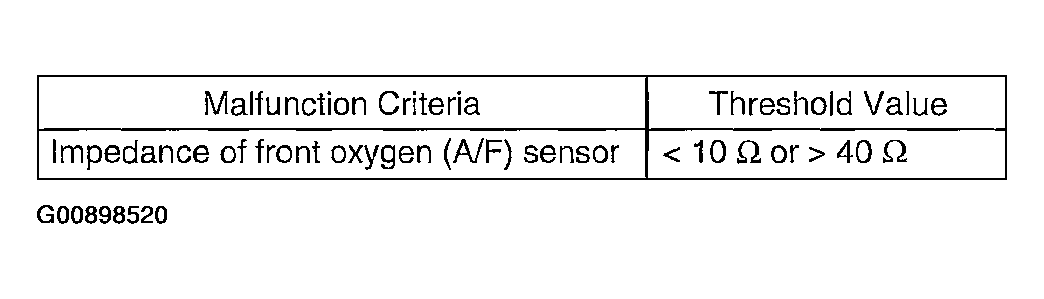

Fig 2: Threshold Value Table (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
