Diagnostic Method

Judge NG when the continuous time of completing all the malfunction criteria below becomes more then 4.5 seconds.

Judgment Value

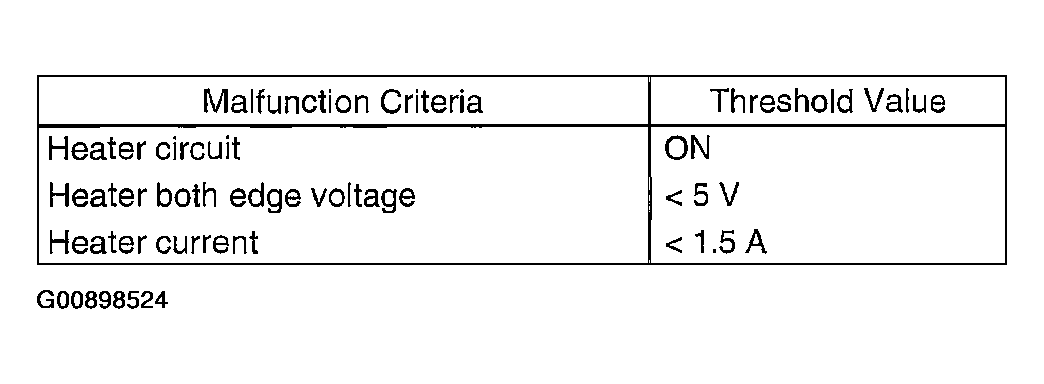

Fig 1: Threshold Value Table

Courtesy of SUBARU OF AMERICA, INC.

1. Time Needed for Diagnosis:

   10 seconds

2. Malfunction Indicator Light Illumination:

   Illuminates as soon as malfunction occurs.
