Diagnostic Method

Judge NG when one of the malfunction criteria below are completed.

Judgment Value

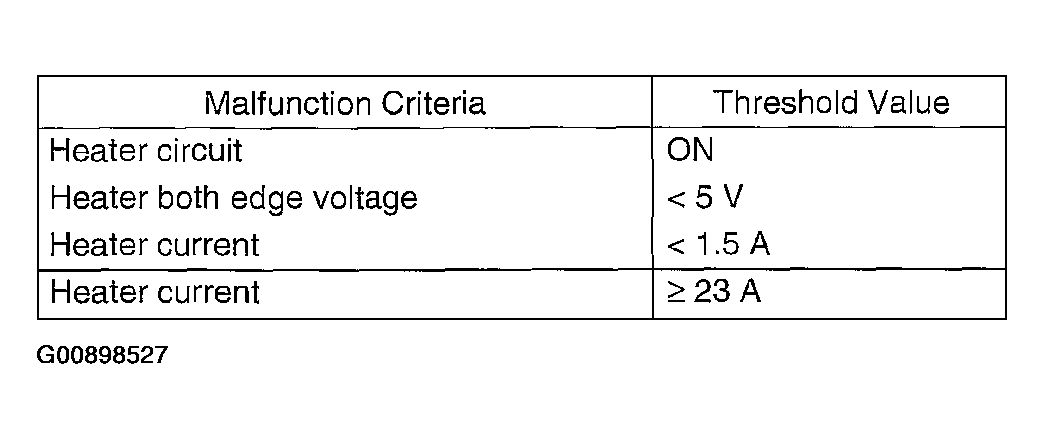

Fig 1: Threshold Value Table

Courtesy of SUBARU OF AMERICA, INC.

1. Time Needed for Diagnosis:

   4.5 seconds

2. Malfunction Indicator Light Illumination:

   Illuminates as soon as malfunction occurs.
