Diagnostic Method

Abnormality Judgment
Judge NG when the continuous time of completing all the malfunction criteria of Low side or High side below becomes more than the time (3 seconds) needed for diagnosis.
Judgment Value

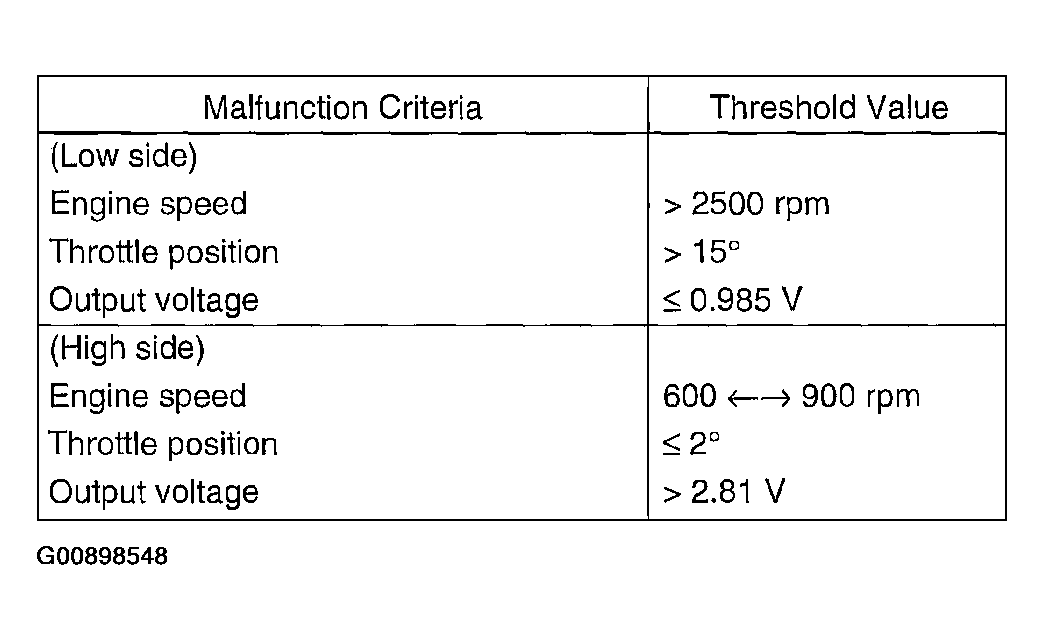

Fig 1: Threshold Value Table (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
1. Time Needed for Diagnosis:
  3 seconds
2. Malfunction Indicator Light Illumination:
  Illuminates when malfunction occurs in 2 continuous driving cycles.
Normality Judgment
Judge OK and clear the NG when all the malfunction criteria of Low side or High side are completed.
Judgment Value

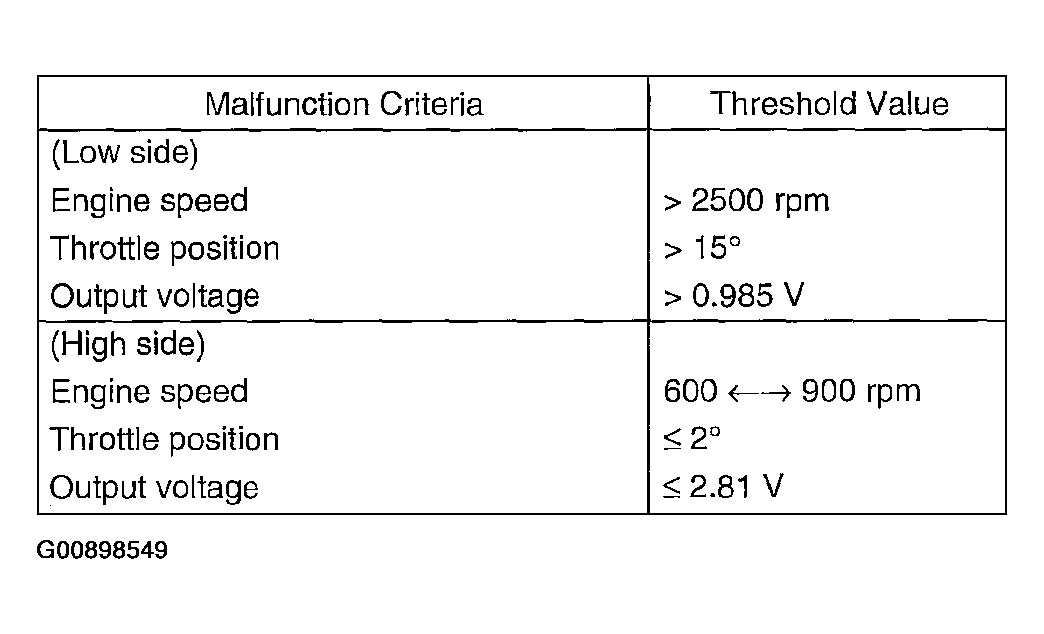

Fig 2: Threshold Value Table (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
