Diagnostic Method

Judge NG when the continuous time until completing the malfunction criteria below becomes more than the time (2.5 seconds) needed for diagnosis.

Judge fail safe NG when the continuous time until completing the malfunction criteria below becomes more than the time (0.2 seconds) needed for diagnosis. Judge OK and clear the NG when the malfunction criteria below are not completed.

Judgment Value

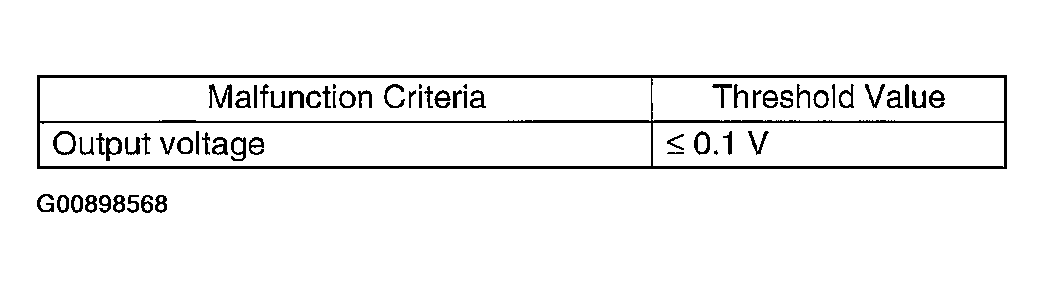

Fig 1: Threshold Value Table

Courtesy of SUBARU OF AMERICA, INC.

1. Time Needed for Diagnosis:

   2.5 seconds

2. Malfunction Indicator Light Illumination:

   Illuminates as soon as malfunction occurs.
