Diagnostic Method

Judge NG when the malfunction criteria below are completed. Judge OK and clear NG when the engine coolant temperature is more than 20°C (68°F) or more.

Judgment Value

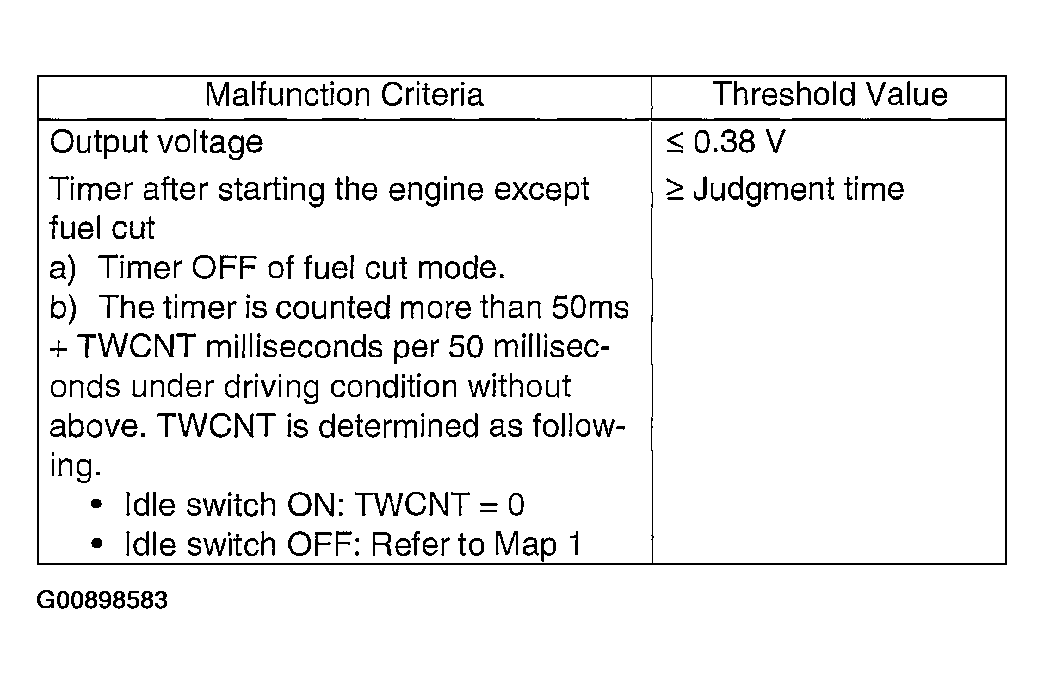

Fig 1: Threshold Value Table

Courtesy of SUBARU OF AMERICA, INC.

Map 1

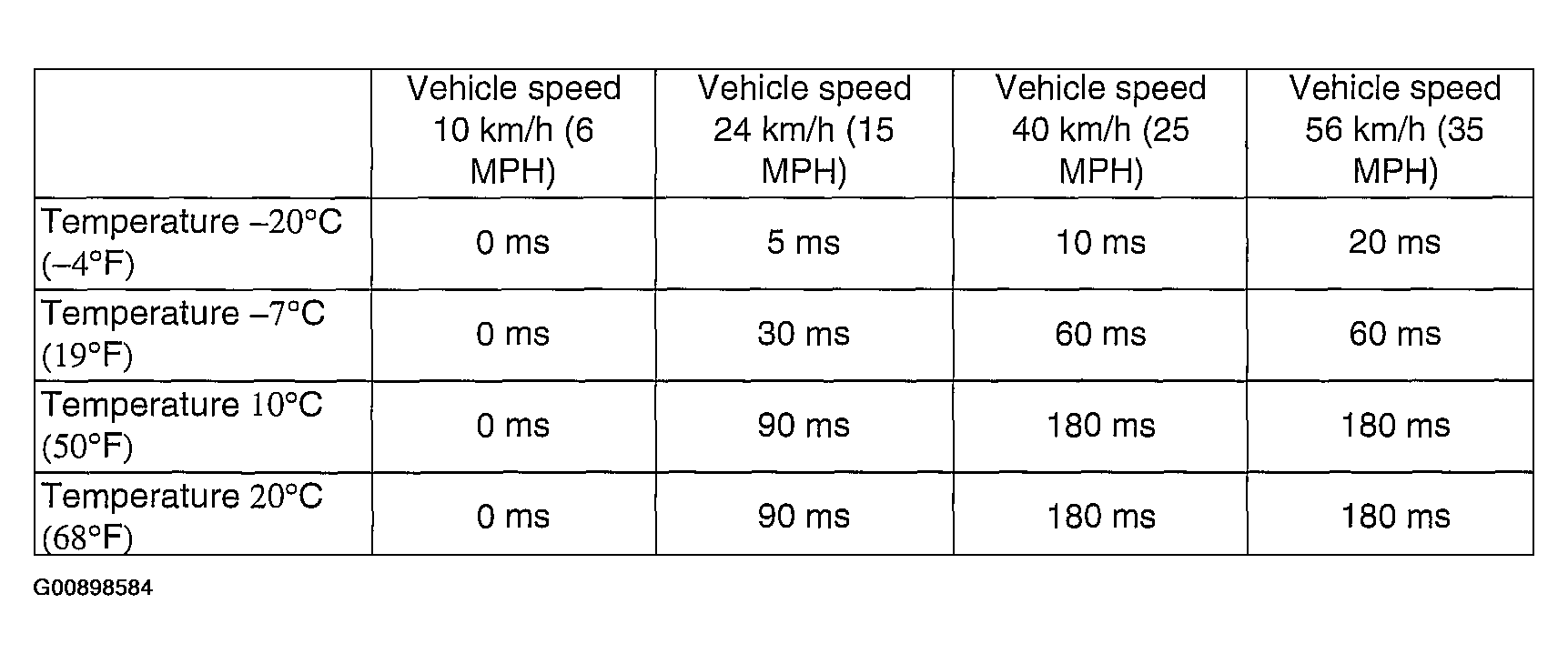

Fig 2: Temperature Table

Courtesy of SUBARU OF AMERICA, INC.

Judgment time: Find from minimum engine coolant temperature.

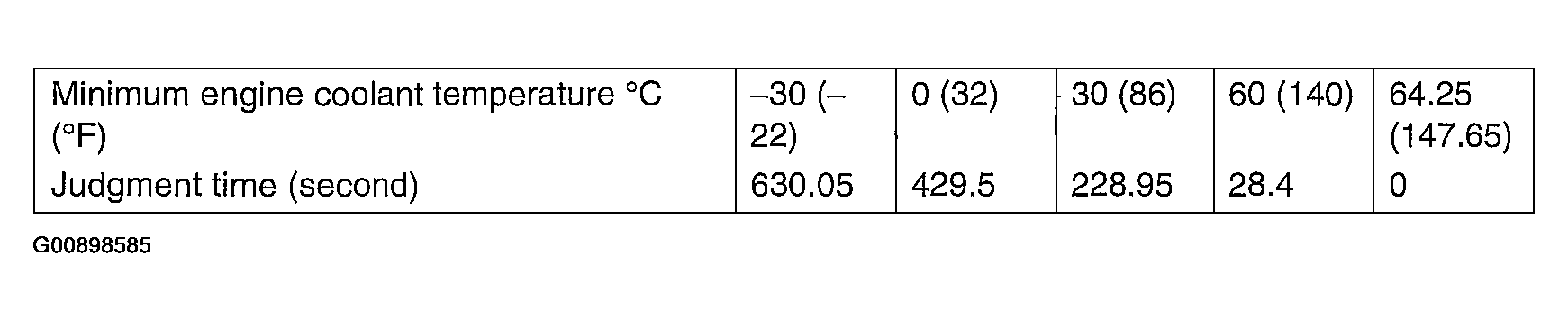

Fig 3: Engine Coolant Temperature Table

Courtesy of SUBARU OF AMERICA, INC.

1. Time Needed for Diagnosis:

   Change at minimum engine coolant temperature.

2. Malfunction Indicator Light Illumination:

   Illuminates when malfunction occurs in 2 continuous driving cycles.
