Diagnostic Method

Judge that the malfunction occurred in fuel system when the malfunction criteria are completed for 50 seconds or more by comparing the diagnostic value (fsobd) with threshold value.

Judgment Value

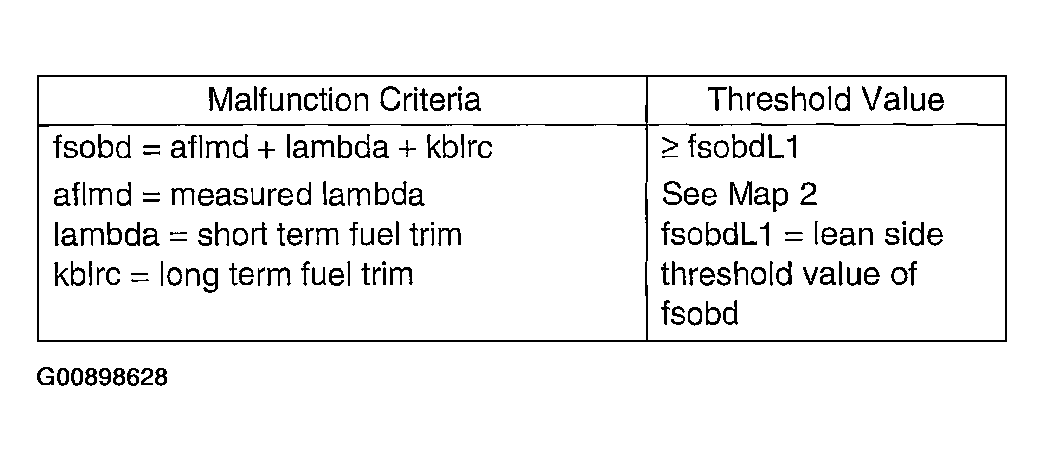

Fig 1: Threshold Value Table (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

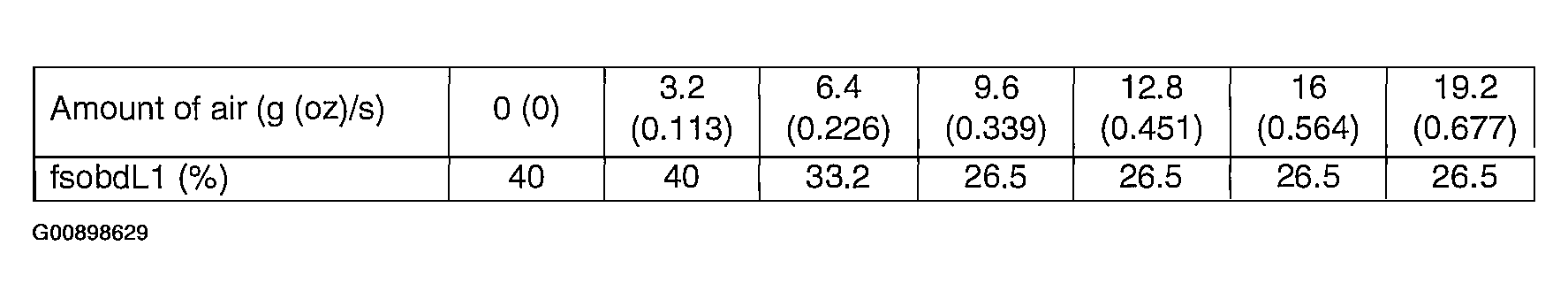

Map 2: Threshold value for fuel system malfunction criteria

Fig 2: Threshold Value Table (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

1. Time Needed for Diagnosis:

   10 seconds X 5 times

2. Malfunction Indicator Light Illumination:

   2 continuous driving cycles.

Judge OK when the malfunction criteria below are completed for 10 seconds or more.

Judgment Value

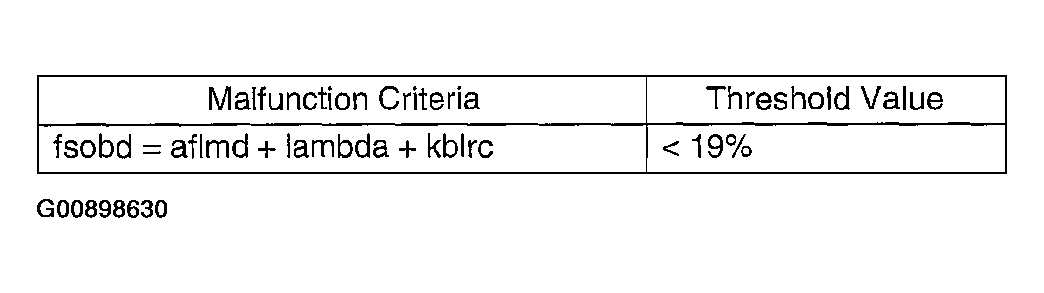

Fig 3: Threshold Value Table (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
