Diagnostic Method

When many crankshaft position sensor signals were input without camshaft position sensor signal input, judge OK and clear NG.

Judgment Value

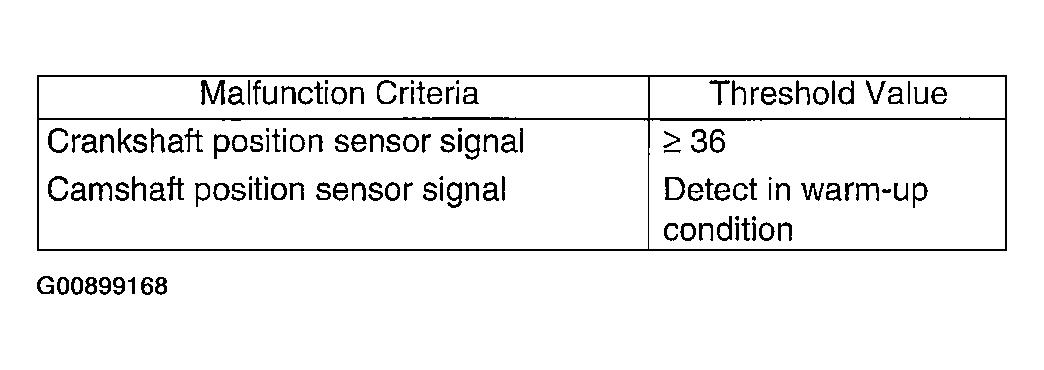

Fig 1: Threshold Value Table

Courtesy of SUBARU OF AMERICA, INC.

1. Time Needed for Diagnosis:  6 revs.
2. Malfunction indicator Light Illumination:  Illuminates as soon as malfunction occurs.
