Diagnostic Method

Output fluctuation accumulate method
The accumulated value of front A/F sensor output changes and the accumulated value of rear oxygen sensor output changes are determined, and the diagnostic value is calculated using the following formula.

Diagnostic value = Accumulated value of rear oxygen sensor output changes / Accumulated value of front A/F sensor output changes
For example

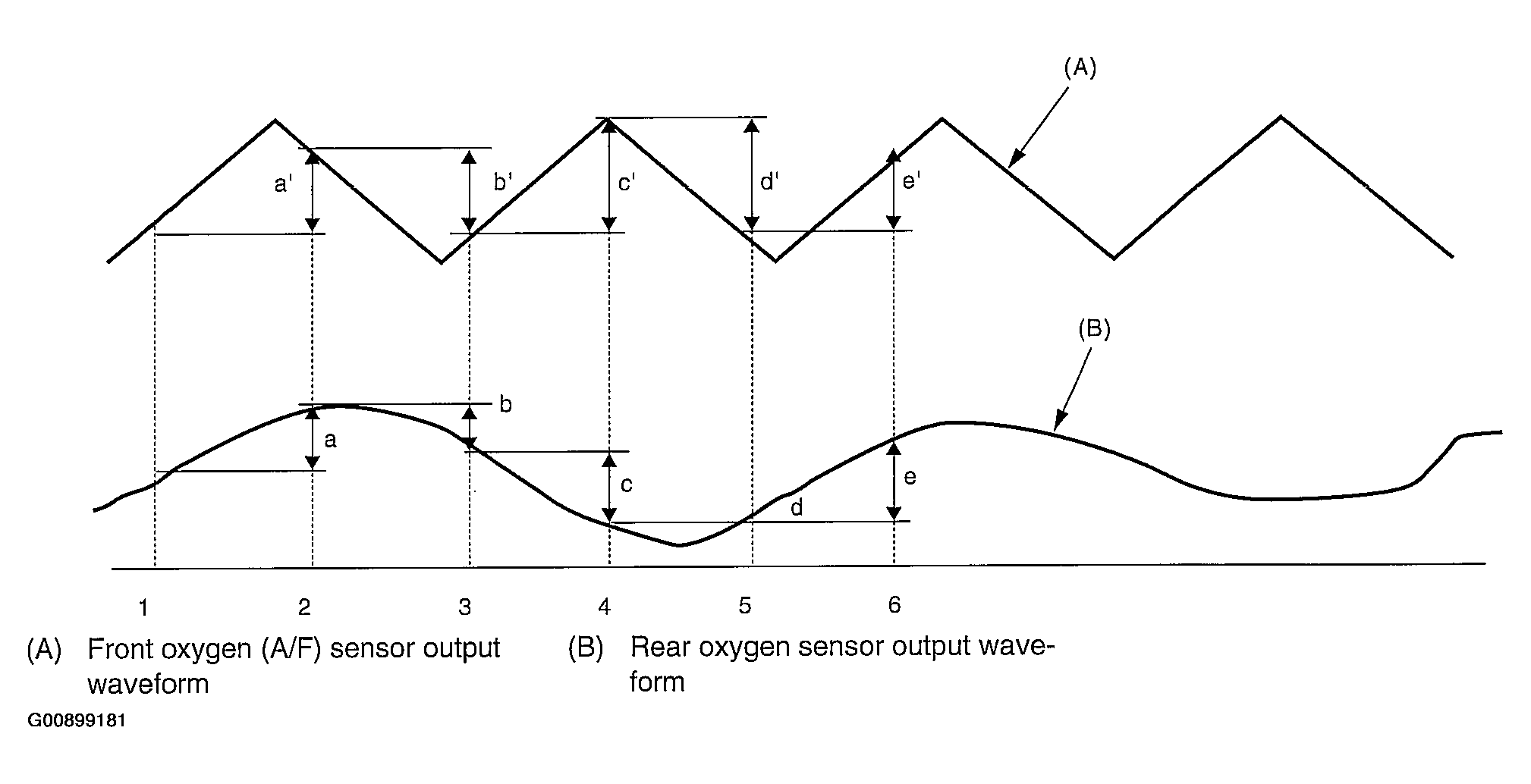

Fig 1: Identifying Front Oxygen (A/F) Sensor Output Waveform
Courtesy of SUBARU OF AMERICA, INC.

Judge NG when the malfunction criteria below are completed, and judge OK when they are not completed.
Judgment Value

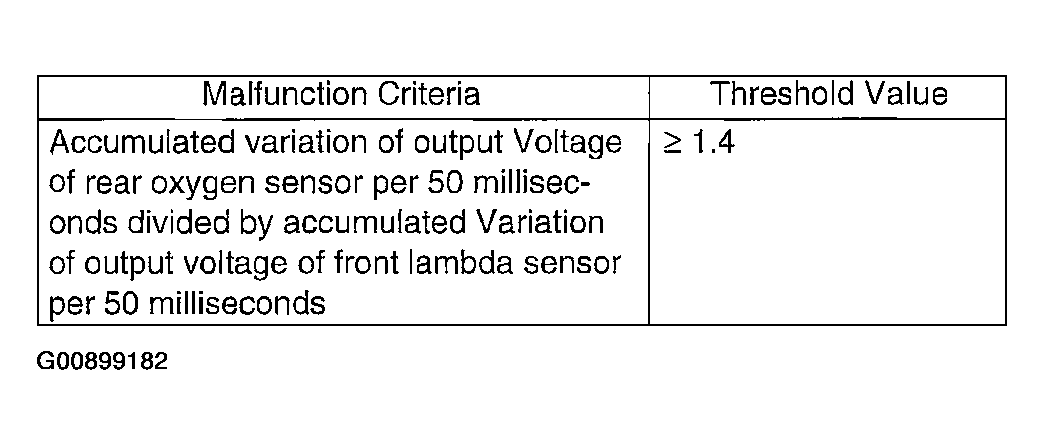

Fig 2: Threshold Value Table
Courtesy of SUBARU OF AMERICA, INC.
1. Time Needed for Diagnosis: 45 seconds
2. Malfunction Indicator Light Illumination: 2 continuous driving cycles.
