Diagnostic Method

Abnormality Judgment
Judge NG when the continuous time of condition which satisfies the malfunction criteria below becomes more than time needed for diagnosis (3 seconds).
Judgment Value

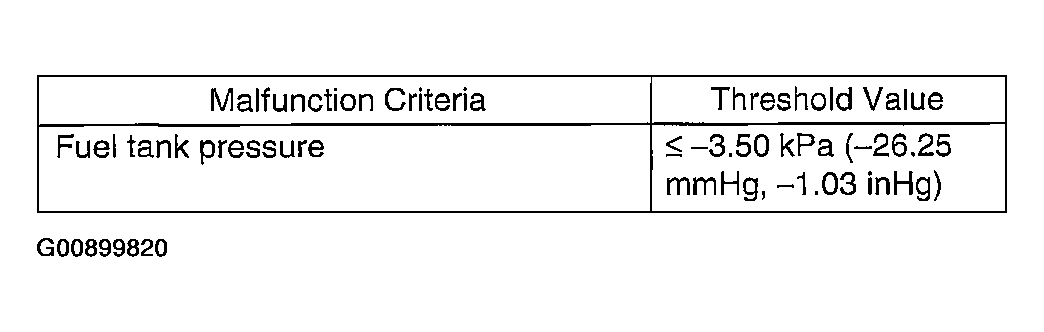

Fig 1: Threshold Value Table (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
1. Time Needed for Diagnosis: 3 seconds
2. Malfunction Indicator Light Illumination: Illuminate when malfunction is detected.
Normality Judgment
Judge OK when all the malfunction criteria below are completed, and then NG are cleared.
Judgment Value

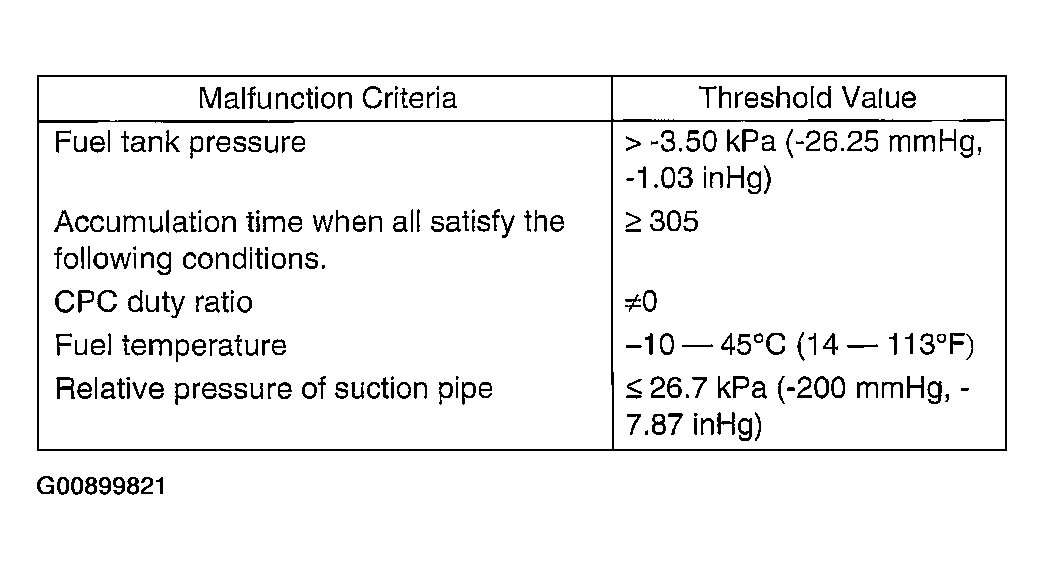

Fig 2: Threshold Value Table (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
