Diagnostic Method

Judge NG when the continuous time until completing the malfunction criteria below becomes more than the time (2.5 seconds) needed for diagnosis. Judge OK and clear the NG when the malfunction criteria are not completed.

Judgment Value

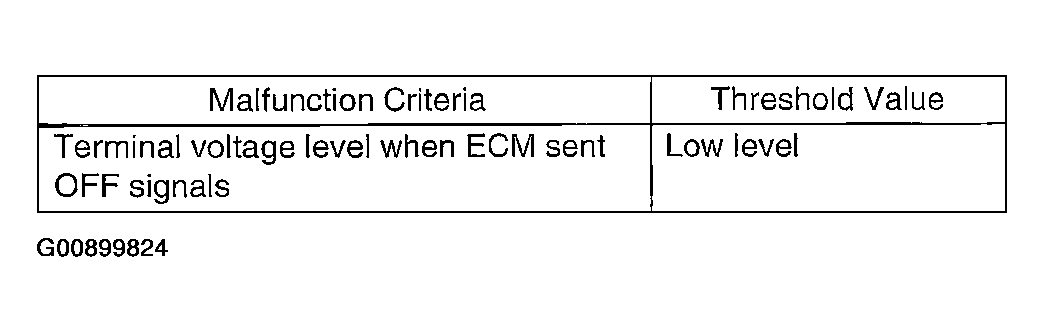

Fig 1: Threshold Value Table

Courtesy of SUBARU OF AMERICA, INC.

1. Time Needed for Diagnosis:

   2.5 seconds

2. Malfunction Indicator Light Illumination:

   Illuminates when malfunction occurs in 2 continuous driving cycles.
