Diagnostic Method

Judgment Value

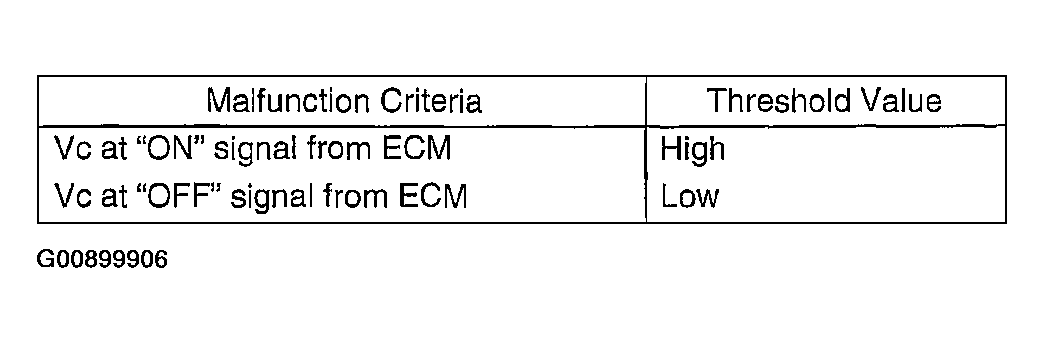

Fig 1: Threshold Value Table`

Courtesy of SUBARU OF AMERICA, INC.

1. Time Needed for Diagnosis:

   2.5 seconds

2. Malfunction Indicator Light Illumination:

   Illuminates when malfunction occurs in 2 continuous driving cycles.
