Diagnostic Procedure

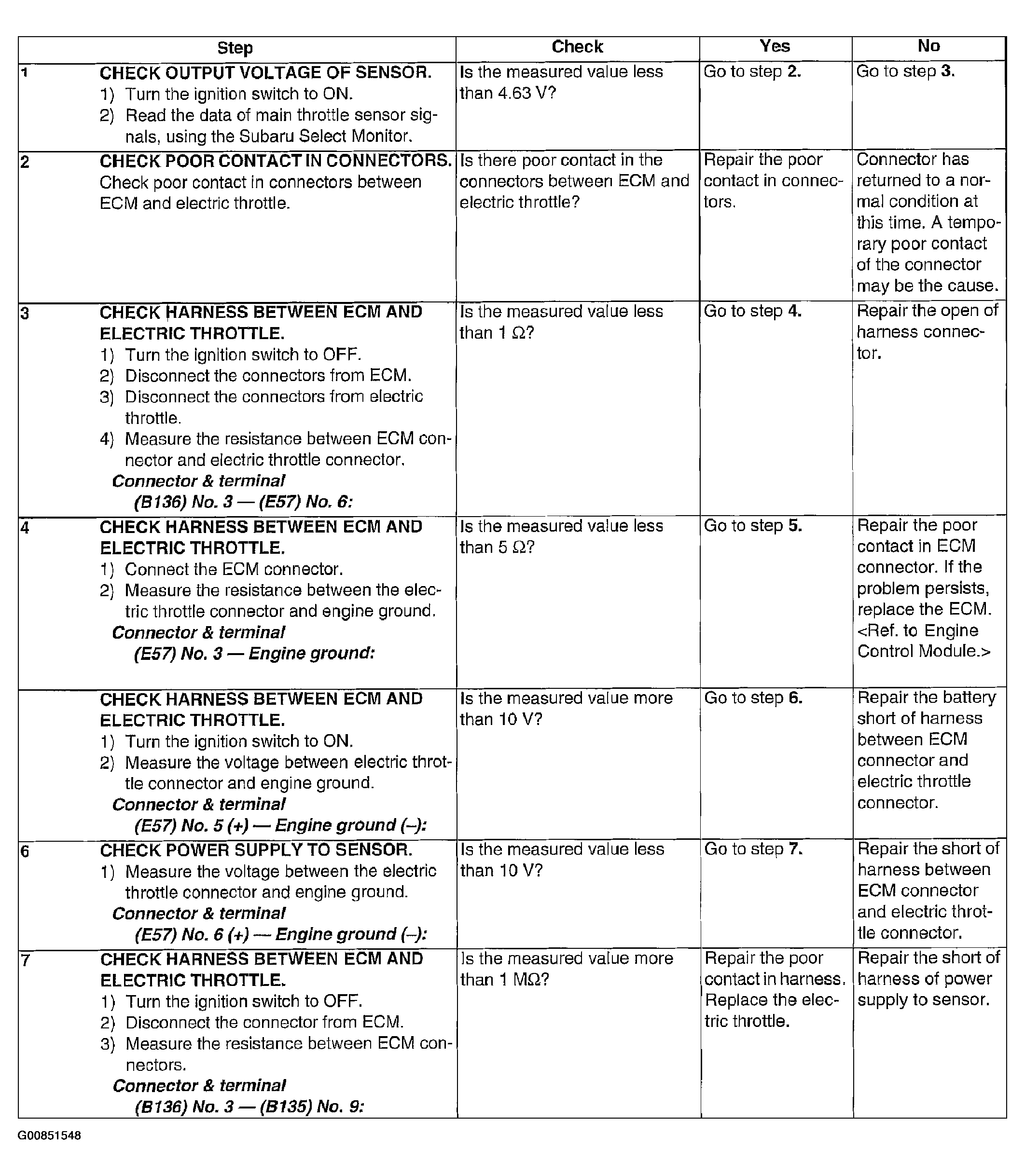

Fig 1: DTC P0123 - Throttle/Pedal Position Sensor/Switch "A" Circuit High Input - Chart
G00851548Courtesy of SUBARU OF AMERICA, INC.
