Diagnostic Procedure

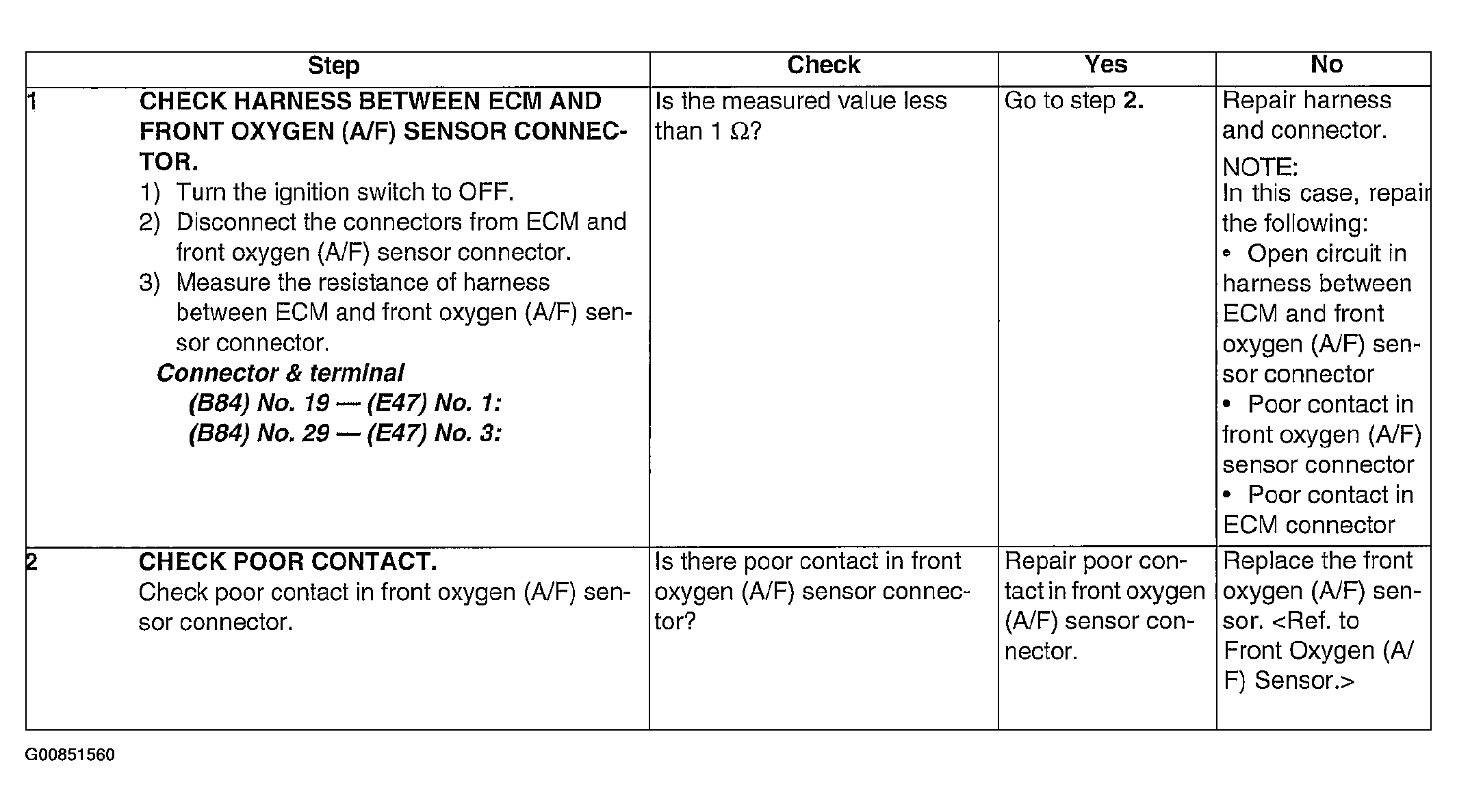

Fig 1: DTC P0134 - O2 Sensor Circuit No Activity Detected (Bank 1 Sensor 1) - Chart
G00851560Courtesy of SUBARU OF AMERICA, INC.
