Diagnostic Procedure

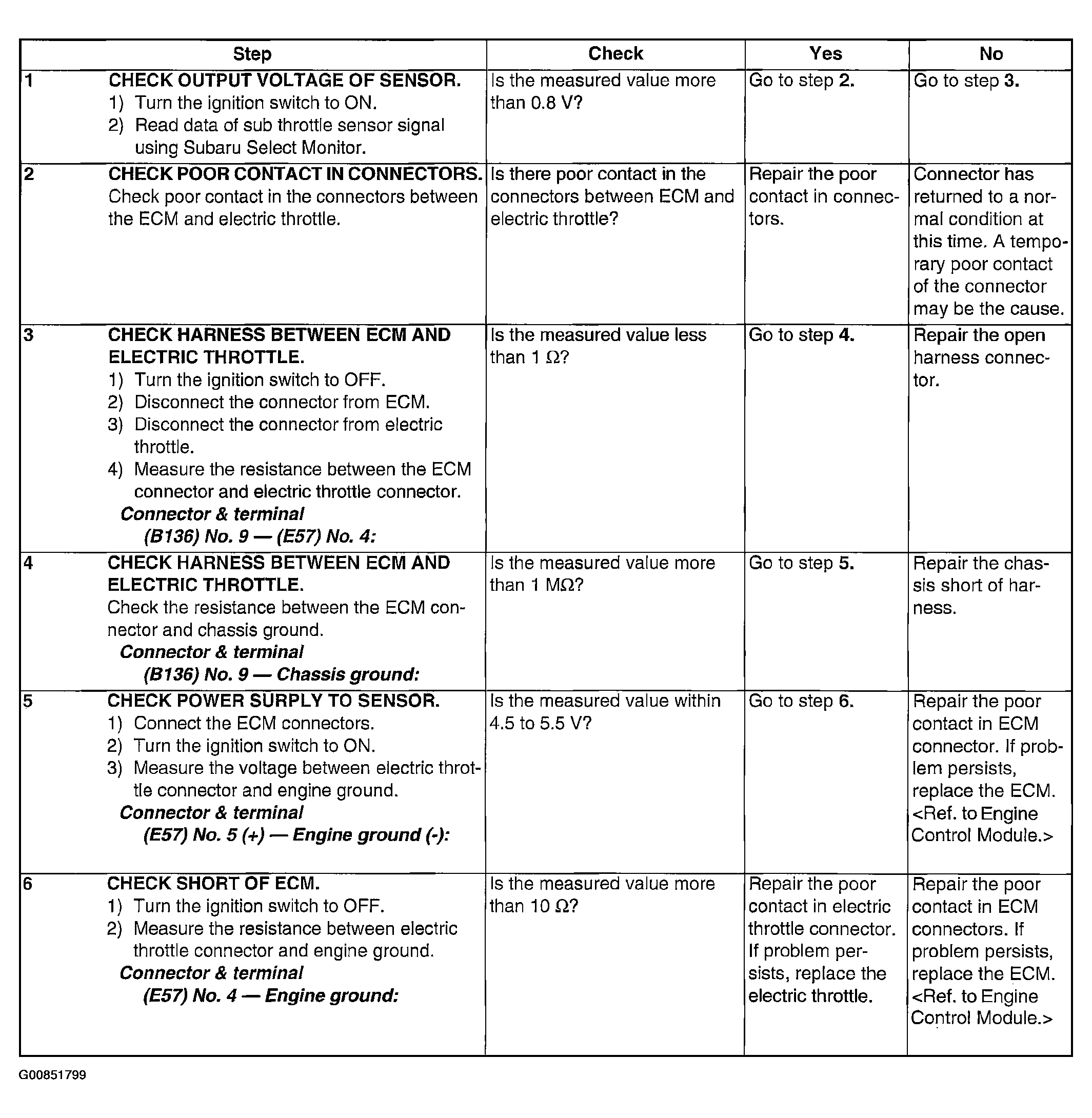

Fig 1: DTC P0222 - Throttle/Pedal Position Sensor/Switch "B" Circuit Low Input - Chart
G00851799Courtesy of SUBARU OF AMERICA, INC.
