Diagnostic Procedure with Diagnostic Trouble Code (DTC)
>>
DTC P0462: Fuel Level Sensor Circuit Low Input
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure

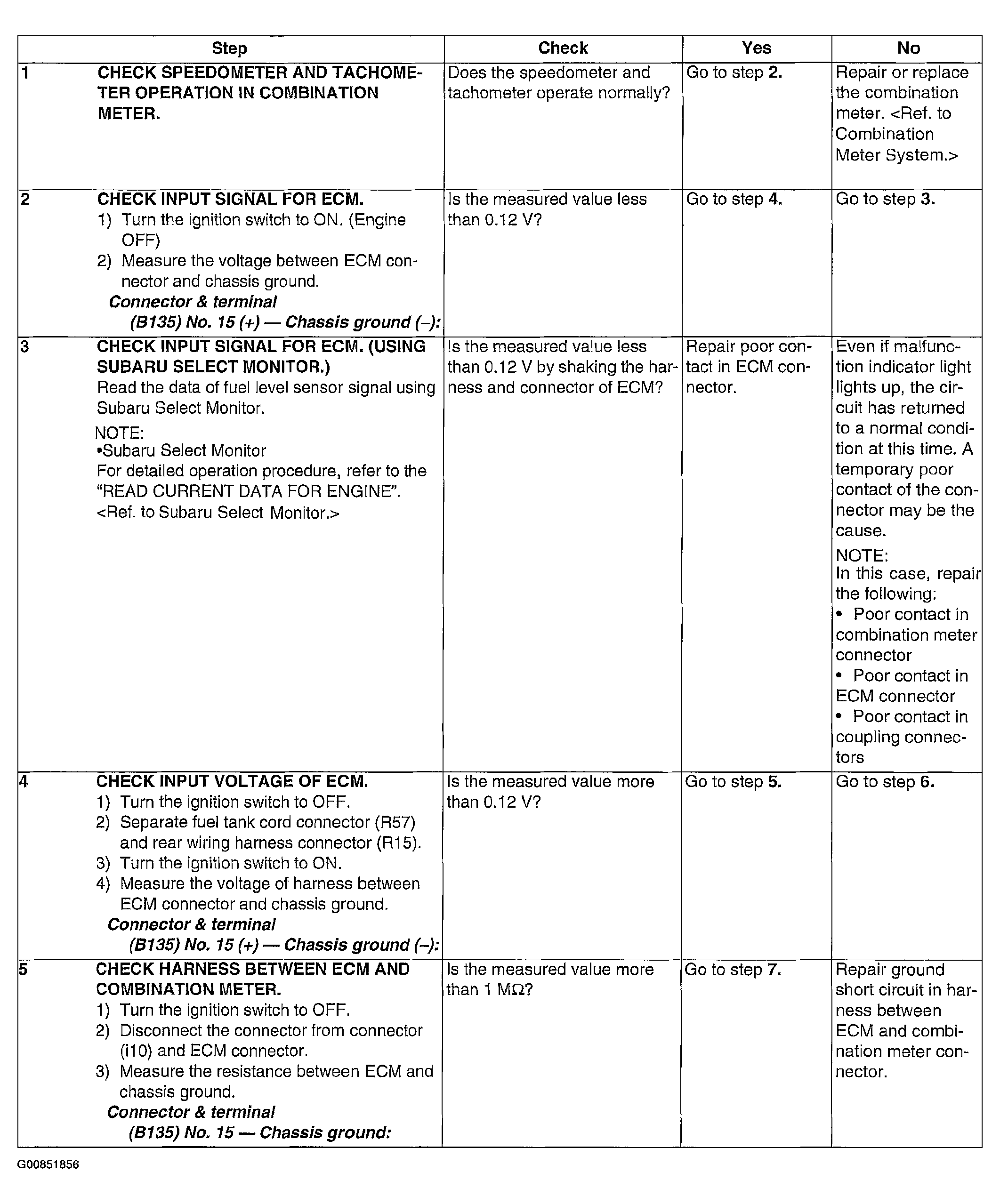

Fig 1: DTC P0462 - Fuel Level Sensor Circuit Low Input - Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

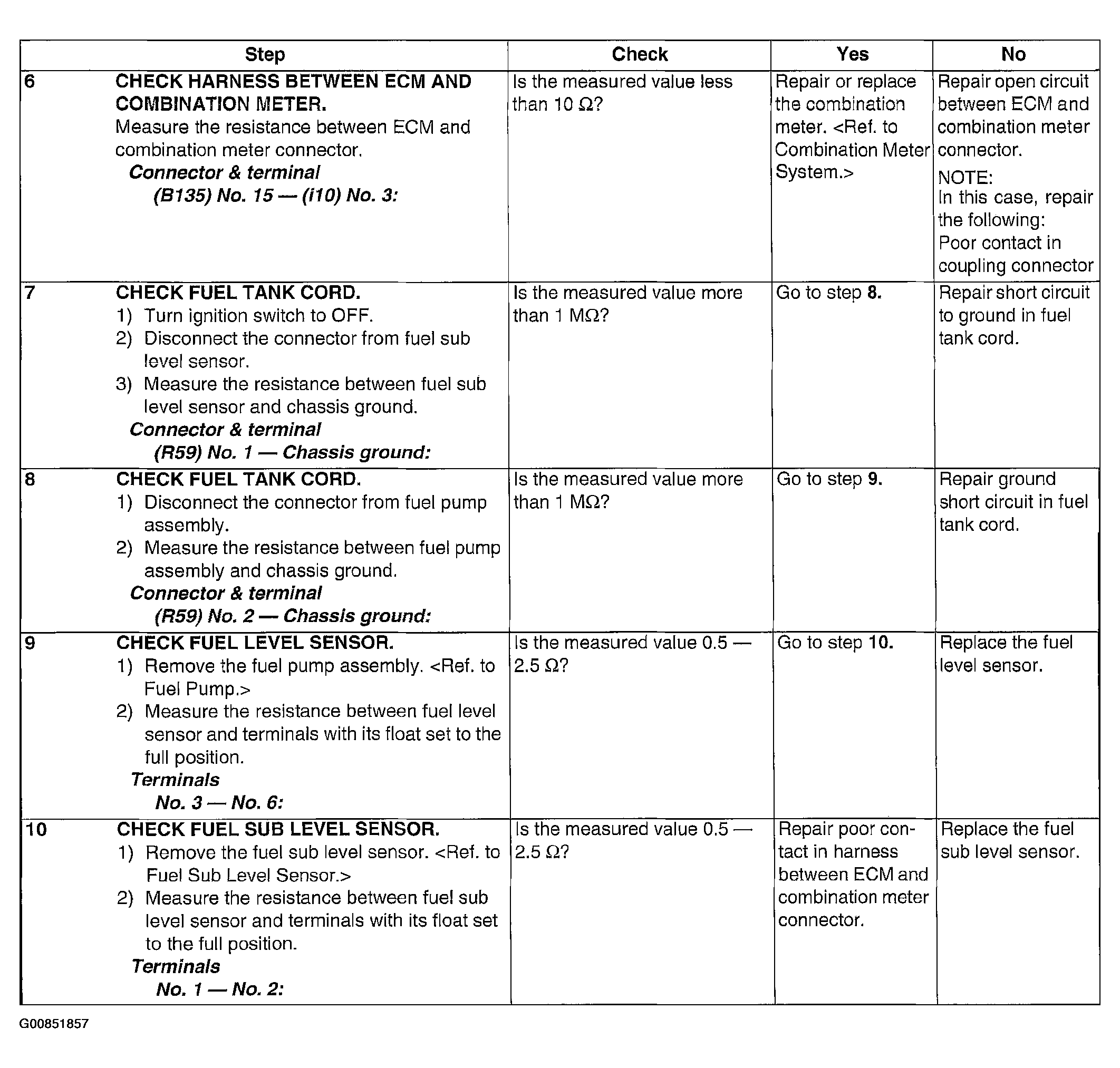

Fig 2: DTC P0462 - Fuel Level Sensor Circuit Low Input - Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
