Diagnostic Procedure

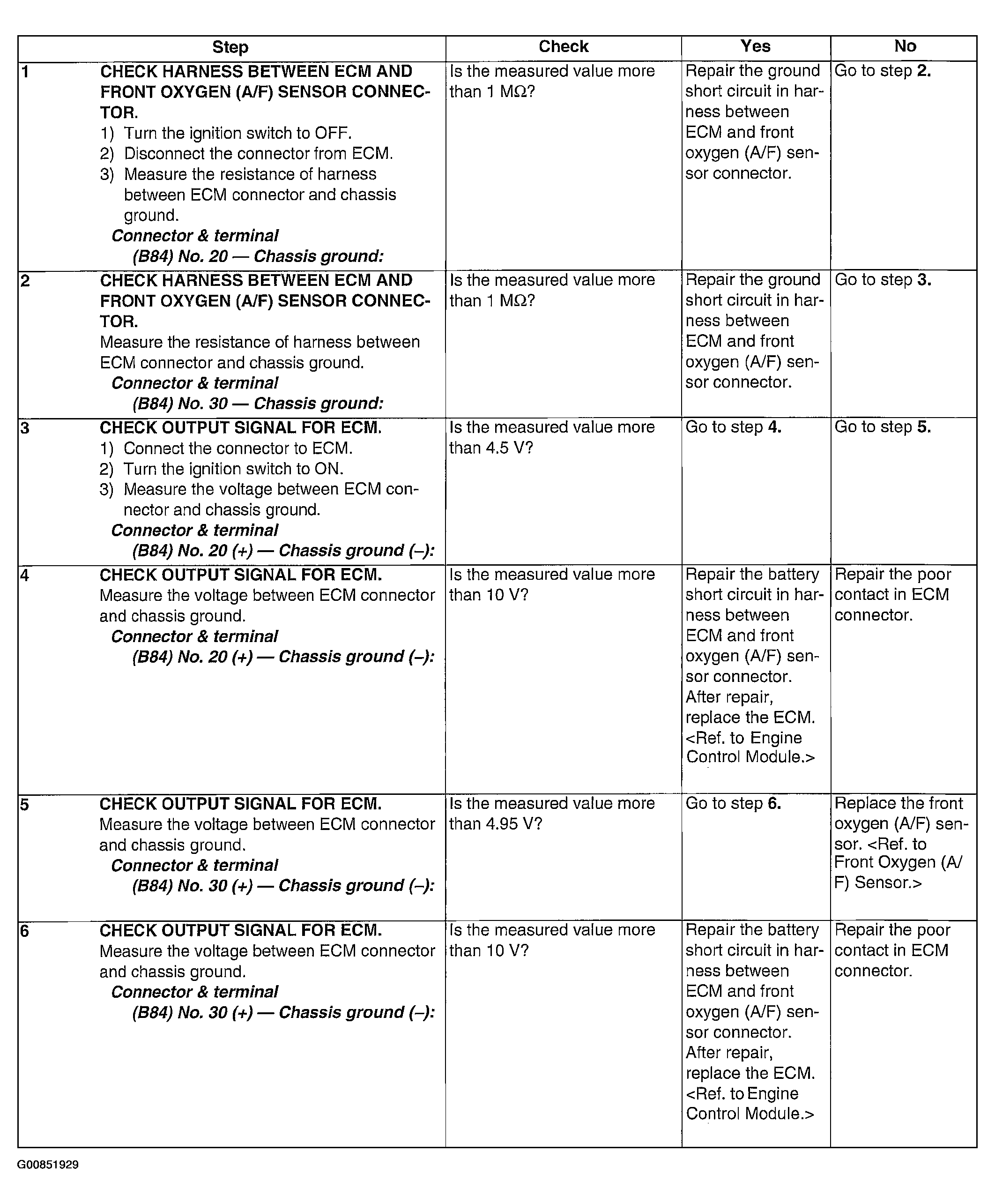

Fig 1: DTC P1155 - O2 Sensor Circuit Range/Performance (High) (Bank 2 Sensor 1) - Chart
G00851929Courtesy of SUBARU OF AMERICA, INC.
