Diagnostic Procedure

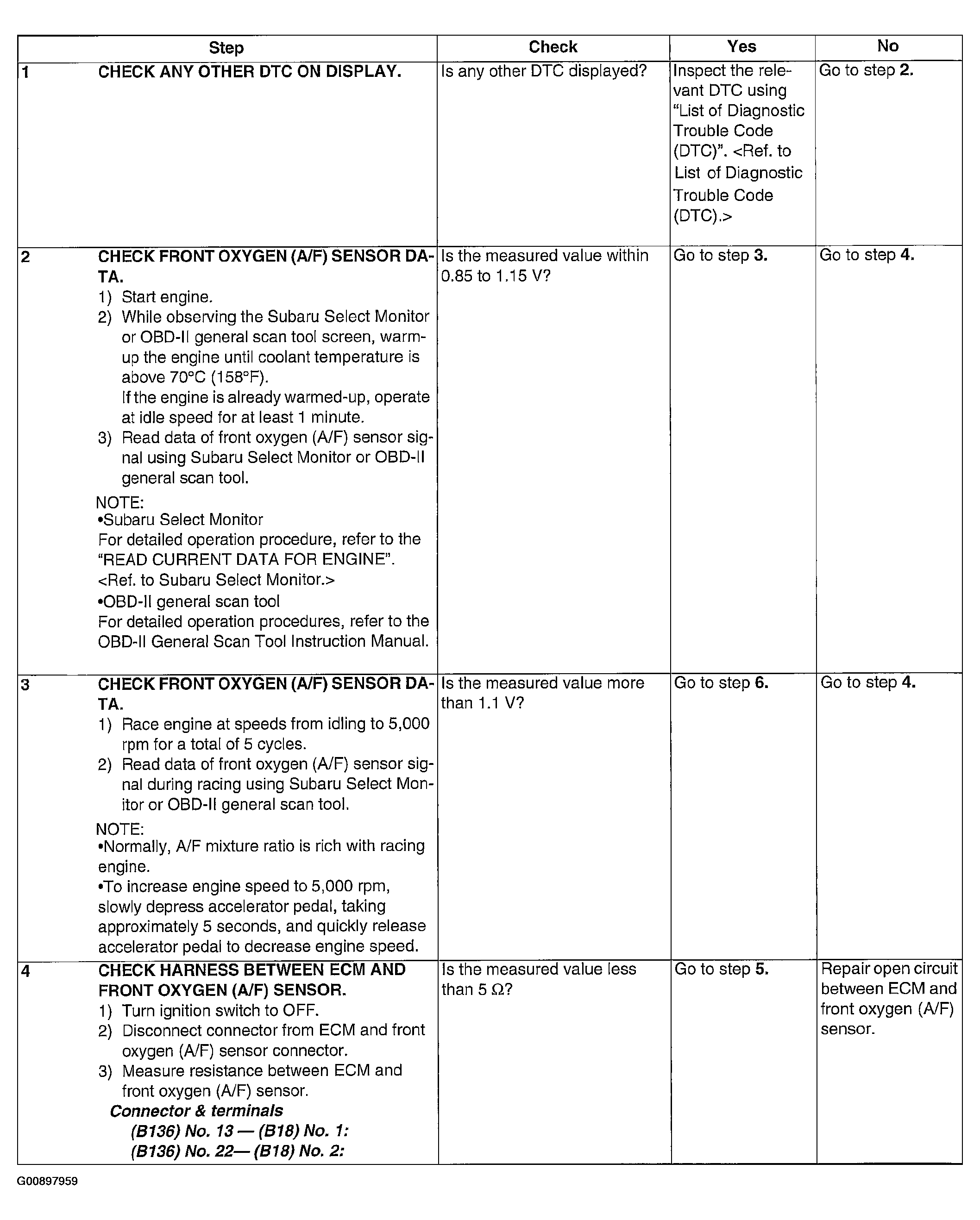

Fig 1: Diagnostic Procedure With Diagnostic Trouble Code Chart (1 Of 2)
G00897959Courtesy of SUBARU OF AMERICA, INC.

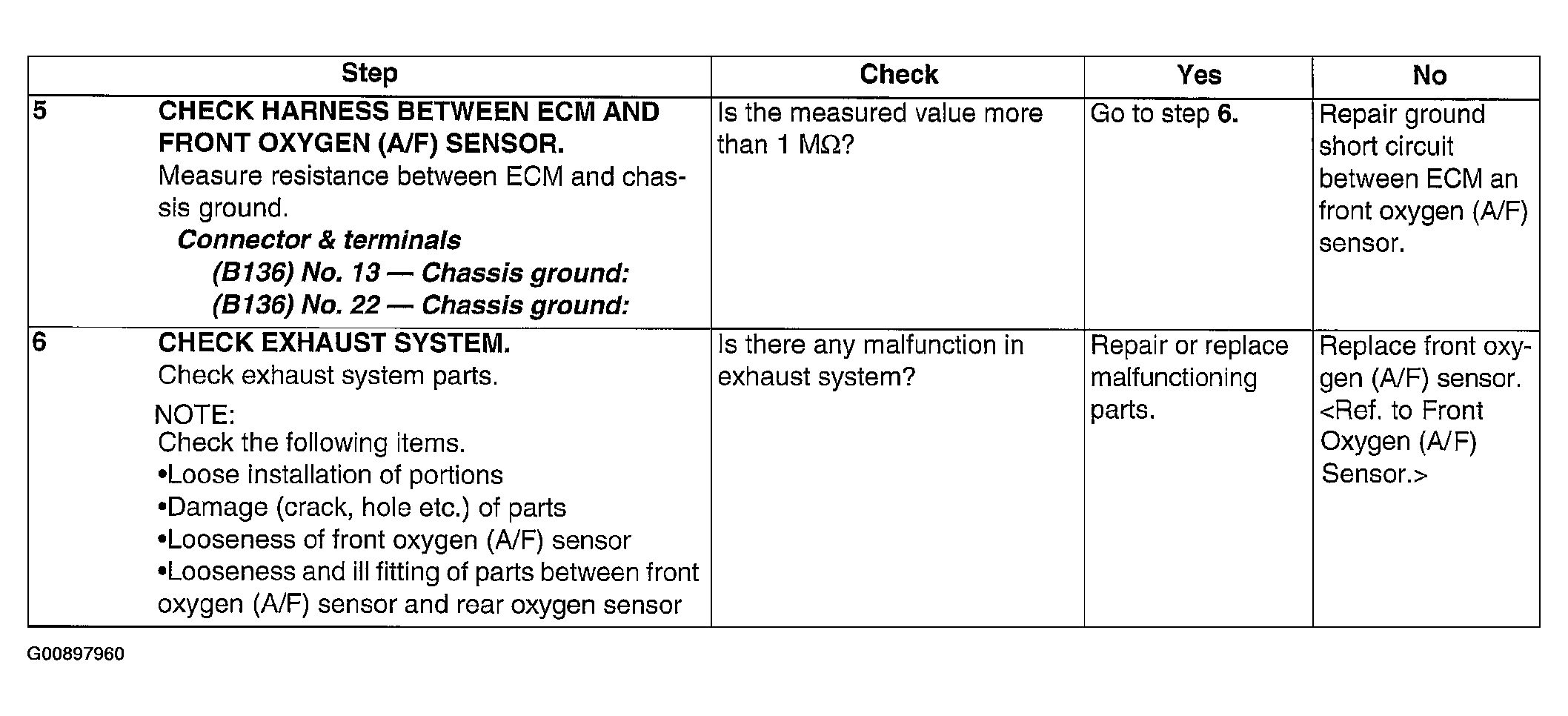

Fig 2: Diagnostic Procedure With Diagnostic Trouble Code Chart (2 Of 2)
G00897960Courtesy of SUBARU OF AMERICA, INC.
