LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Subaru
>>
2004
>>
Baja Base, Automatic
>>
Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
System
>>
Engine (Diagnostics) (H4SO)
>>
Diagnostic Procedure with Diagnostic Trouble Codes
>>
DTC P0134: O2 Sensor Circuit No Activity Detected (Bank 1 Sensor 1)
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure

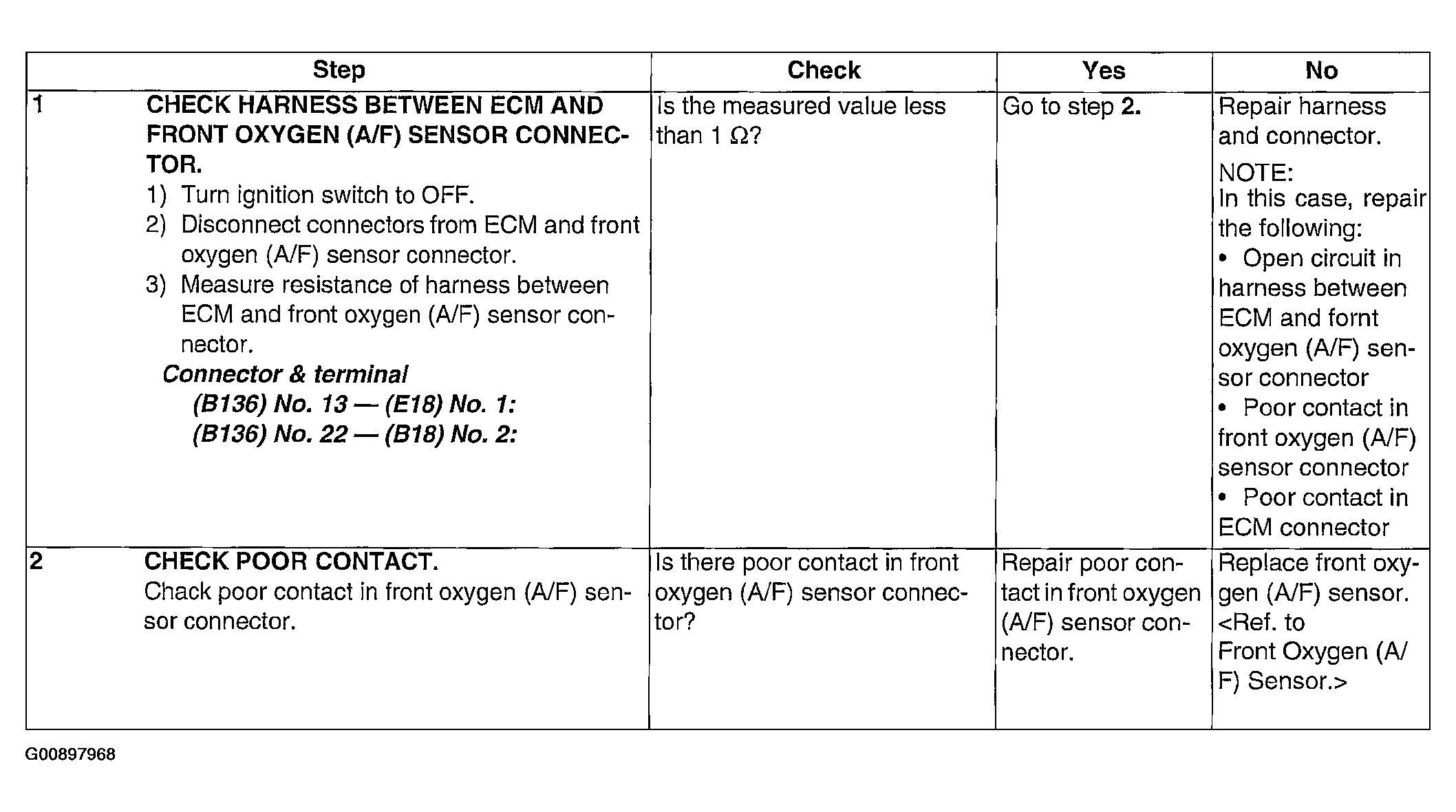

Fig 1: Diagnostic Procedure With Diagnostic Trouble Code Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
