Diagnostic Trouble Code (DTC) Detecting Criteria (H4SO U5 (PZEV))
>>
Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P0139: O2 Sensor Circuit Slow Response (Bank 1 Sensor 2)
>>
Enable Condition
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Enable Condition

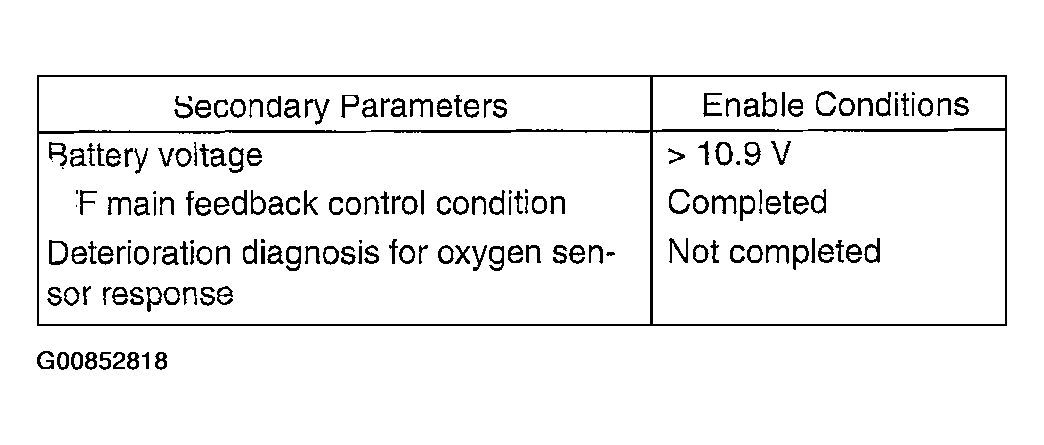

Rich --> Lean response diagnosis
Fig 1: Enable Condition Table
Courtesy of SUBARU OF AMERICA, INC.

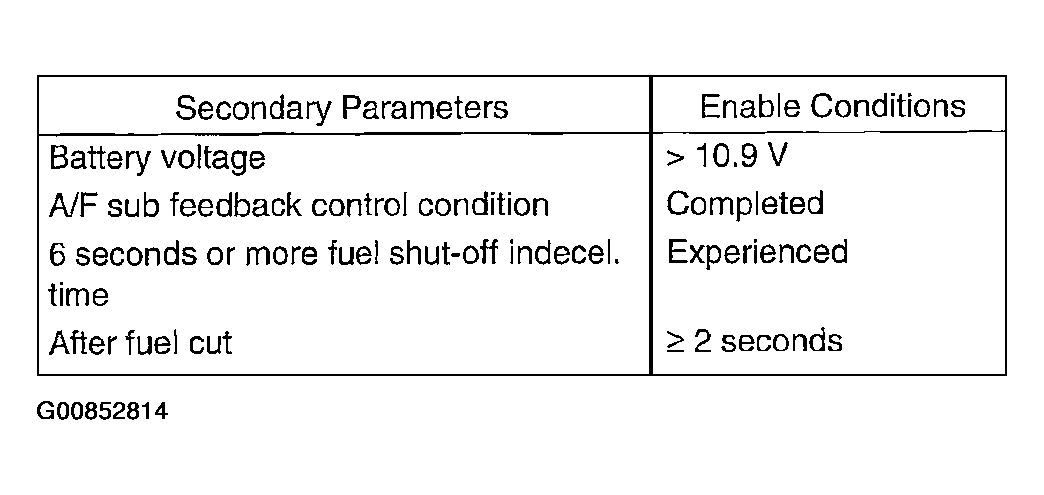

Lean --> Rich response diagnosis
Fig 1: Enable Condition Table
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
