Diagnostic Method

• Abnormality Judgment

  Judge NG when the continuous time of completing the malfunction criteria below becomes more than 0.5 seconds.

• Judgment Value

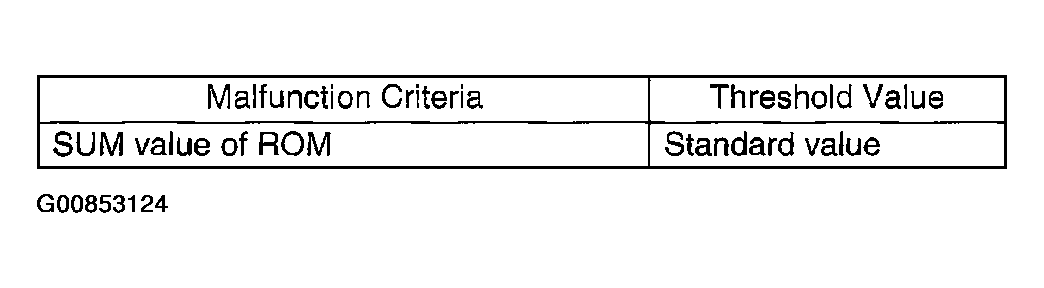

Fig 1: Threshold Valve Table

Courtesy of SUBARU OF AMERICA, INC.

Time Needed for Diagnosis:  0.5 seconds

Malfunction Indicator Light Illumination:  Illuminates as soon as malfunction occurs.
